Dynamic effects of interacting genes underlying rice flowering-time phenotypic plasticity and global adaptation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

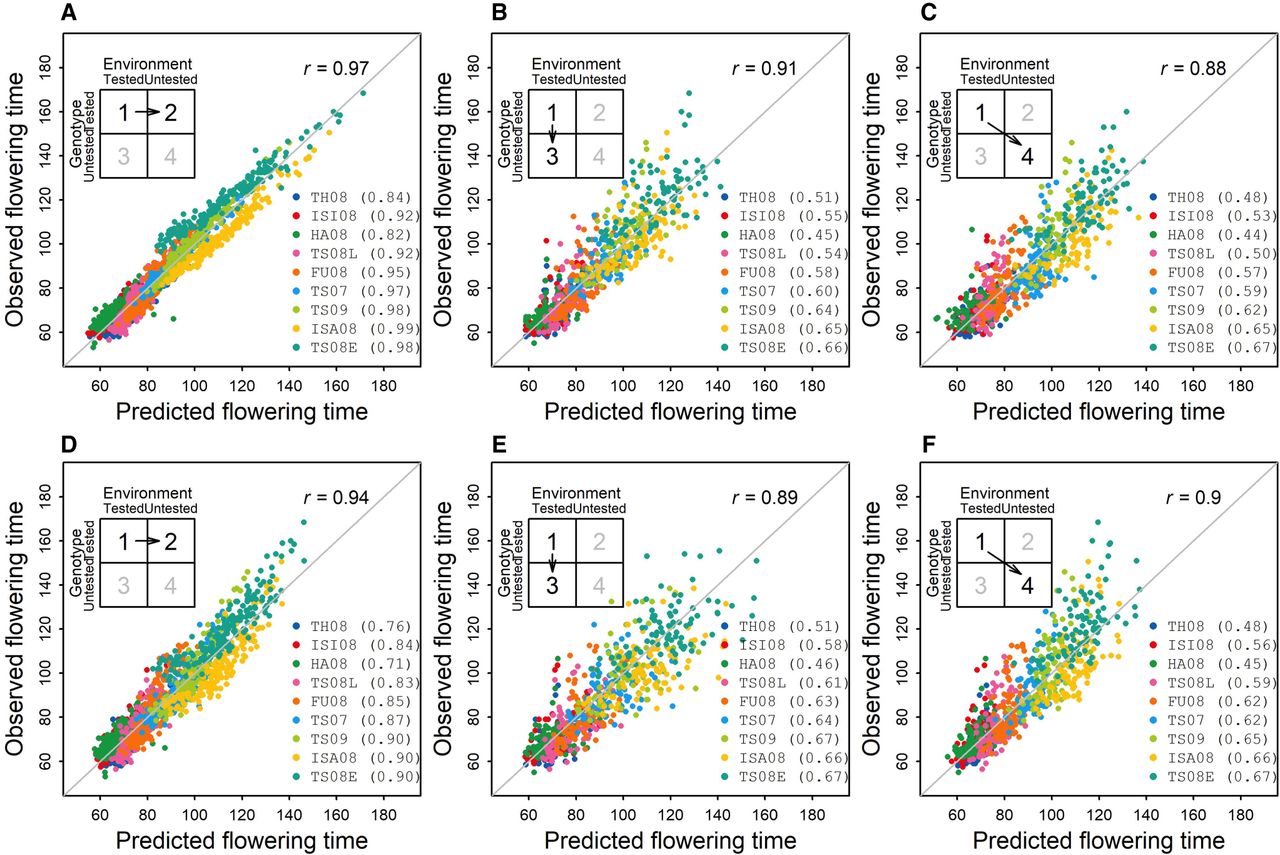

Figure 3.
Figure 3.

Performance prediction of flowering time with joint genomic regression analysis (JGRA) to leverage environmental index and genomic prediction. (AC) JGRA using reaction-norm parameters. (DF) JGRA using genome-wide marker effect continua. The three scenarios are predicting performance for tested genotypes in untested environments (A,D), predicting performance for untested genotypes in tested environments (B,E), and predicting performance for untested genotypes in untested environments (C,F). Prediction accuracy within each individual environment (in parentheses) and across all environments (r) are indicated; the diagonal line indicates the exact match between observed and predicted values.

This Article

  1. Genome Res. 30: 673-683

Preprint Server
