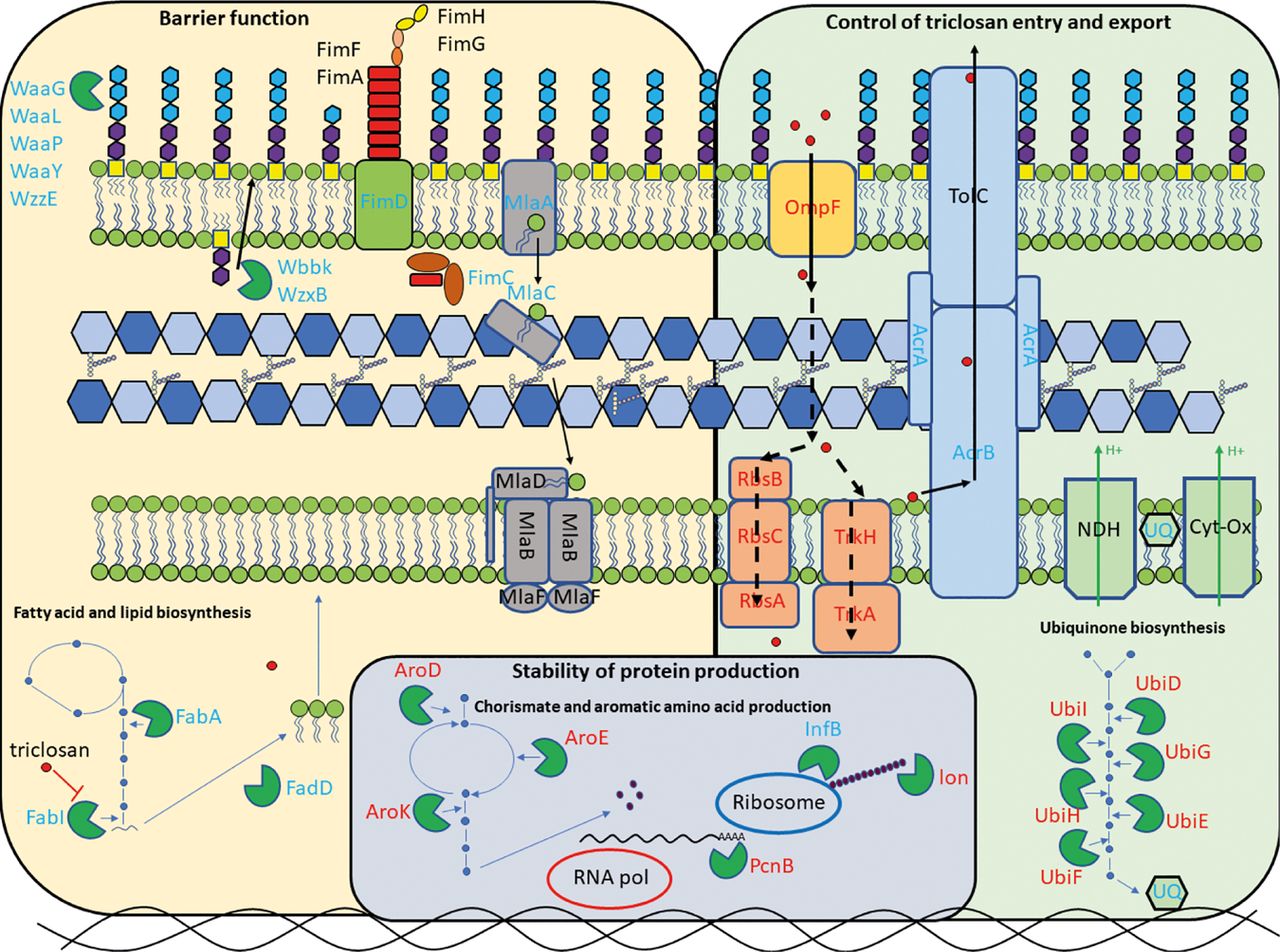

Figure 6.
Overview of the major cellular pathways revealed as being involved in triclosan sensitivity by TraDIS-Xpress. Proteins with blue name labels appear beneficial to survival in the presence of triclosan; those with red name labels contribute to triclosan sensitivity. Dotted lines indicate potential routes of triclosan movement across the inner membrane.
