Tissue-specific patterns of regulatory changes underlying gene expression differences among Ficedula flycatchers and their naturally occurring F1 hybrids

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

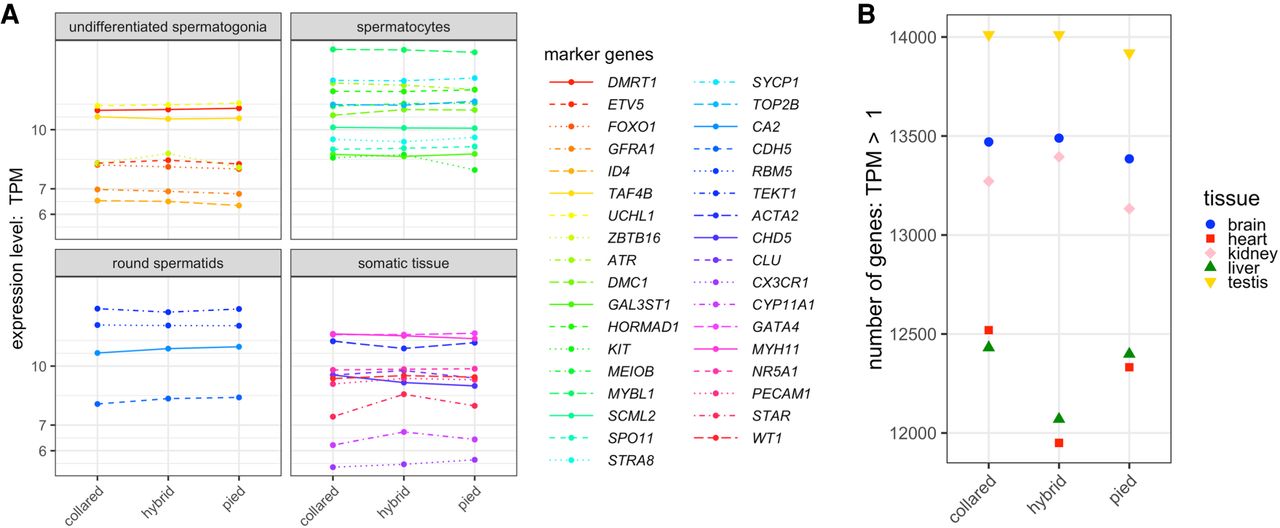

Figure 5.
Figure 5.

Transcription profile of the testis. (A) Gene expression levels (inTPM) of spermatogenesis cell-type marker genes categorized into four different stages—undifferentiated spermatogonia, spermatocytes, round spermatids, and testis niche cells—in testis of collared flycatcher, pied flycatcher, and their F1 hybrids. (B) Number of genes expressed at an expression level TPM > 1 for the five tissues, for collared flycatcher, pied flycatcher, and their F1 hybrids.

This Article

  1. Published in Advance November 3, 2020, doi: 10.1101/gr.254508.119 Genome Res. 30: 1727-1739
