Genome variation and population structure among 1142 mosquitoes of the African malaria vector species Anopheles gambiae and Anopheles coluzzii

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

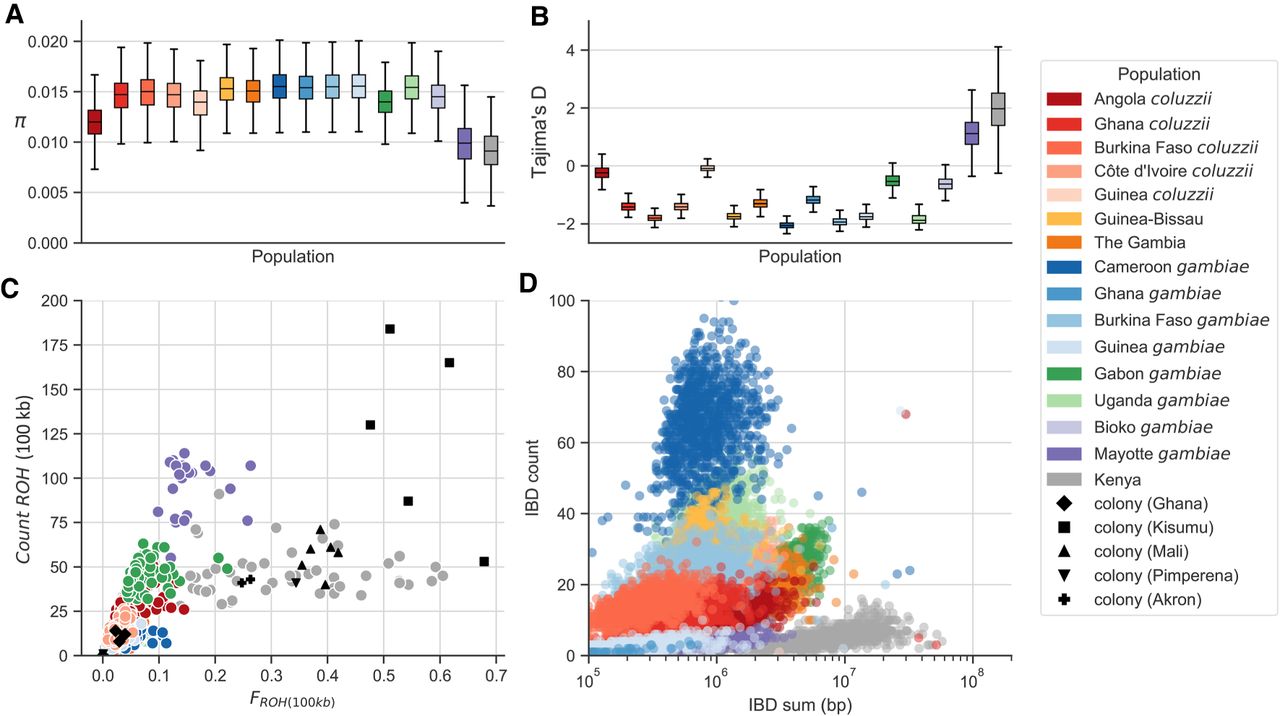

Genetic diversity within populations. (A) Nucleotide diversity (Formula) calculated in nonoverlapping 20-kbp genomic windows using SNPs from euchromatic regions of Chromosome 3. (B) Tajima's D calculated in nonoverlapping 20-kbp genomic windows using SNPs from euchromatic regions of Chromosome 3. (C) Runs of homozygosity (ROH) in individual mosquitoes. Each marker represents an individual mosquito. (D) Runs of identity by descent (IBD) between individuals. Each marker represents a pair of individuals drawn from the same population.

This Article

  1. Published in Advance September 28, 2020, doi: 10.1101/gr.262790.120 Genome Res. 30: 1533-1546
