Whole-genome sequencing reveals high complexity of copy number variation at insecticide resistance loci in malaria mosquitoes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

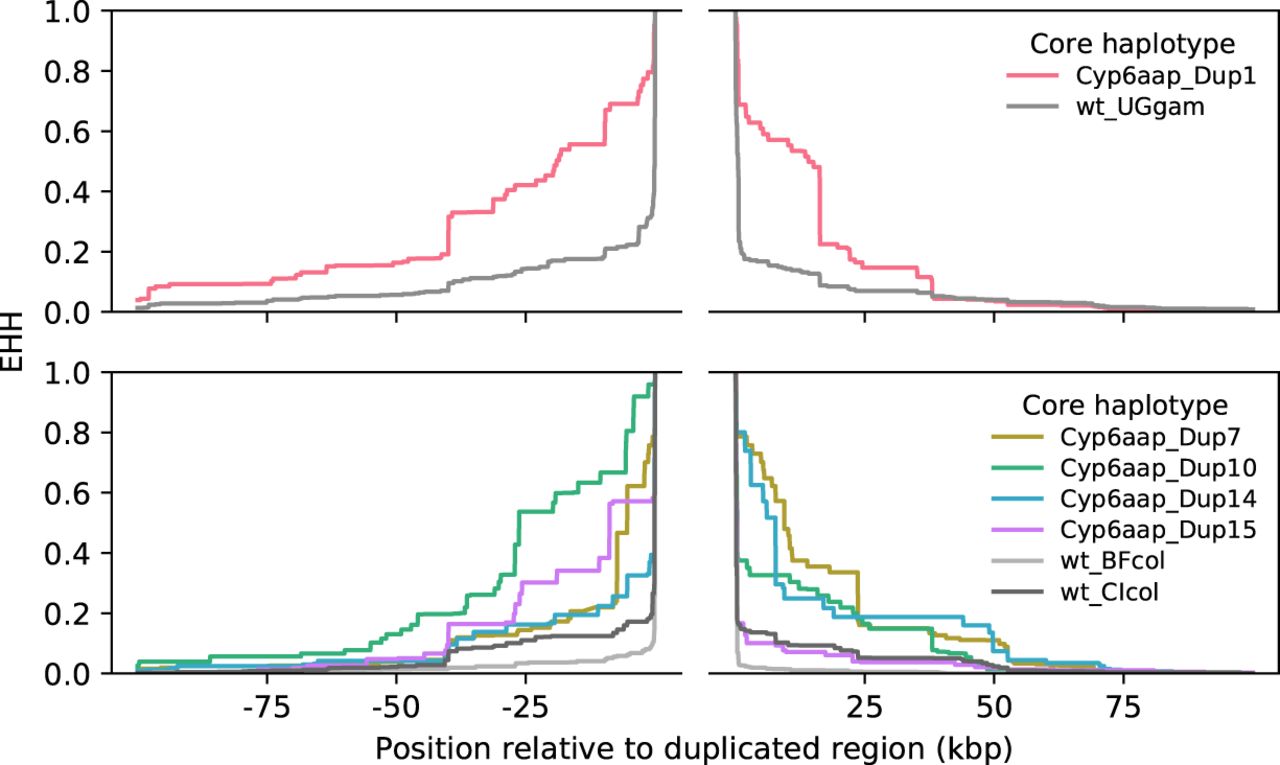

Figure 4.
Figure 4.

Evidence for prolonged linkage disequilibrium around CNVs in the Cyp6aa1–Cyp6p2 gene cluster. Extended haplotype homozygosity (EHH) decay was calculated around CNV and non-CNV (WT) haplotypes using SNPs from outside the region containing CNVs (break in the x-axis): (BF) Burkina Faso; (CI) Côte d'Ivoire; (UG) Uganda; (col) An. coluzzii; (gam) An. gambiae.

This Article

  1. Published in Advance July 25, 2019, doi: 10.1101/gr.245795.118 Genome Res. 29: 1250-1261
