Genome-wide reconstitution of chromatin transactions reveals that RSC preferentially disrupts H2AZ-containing nucleosomes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

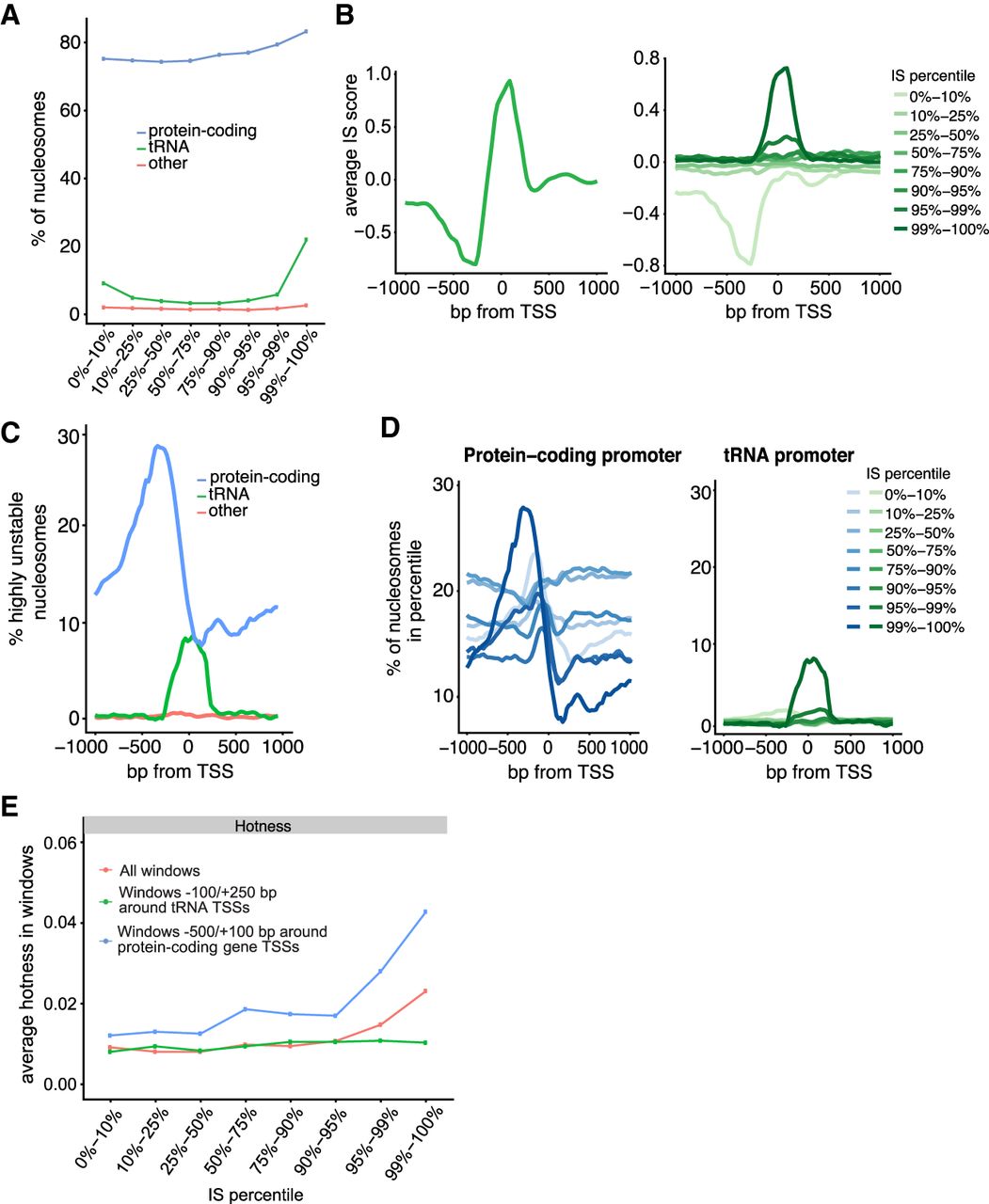

Figure 3.
Figure 3.

Characterization of unstable nucleosomes. (A) IS percentiles plotted against nucleosomes that overlap with genes. (B) Left, average ISs around the TSS of tRNA genes. Right, as left, but averages observed in different IS percentiles. (C) Position around the TSS of nucleosomes in the 99th IS percentile. (D) Left, as C, but nucleosomes in different IS percentiles around the TSS of protein-coding genes. Right, as left, but for tRNA. (E) Hotness of nucleosome windows in percentiles, around TSSs and across the genome.

This Article

  1. Published in Advance May 16, 2019, doi: 10.1101/gr.243139.118 Genome Res. 29: 988-998
