Regional epigenetic differentiation of the Z Chromosome between sexes in a female heterogametic system

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

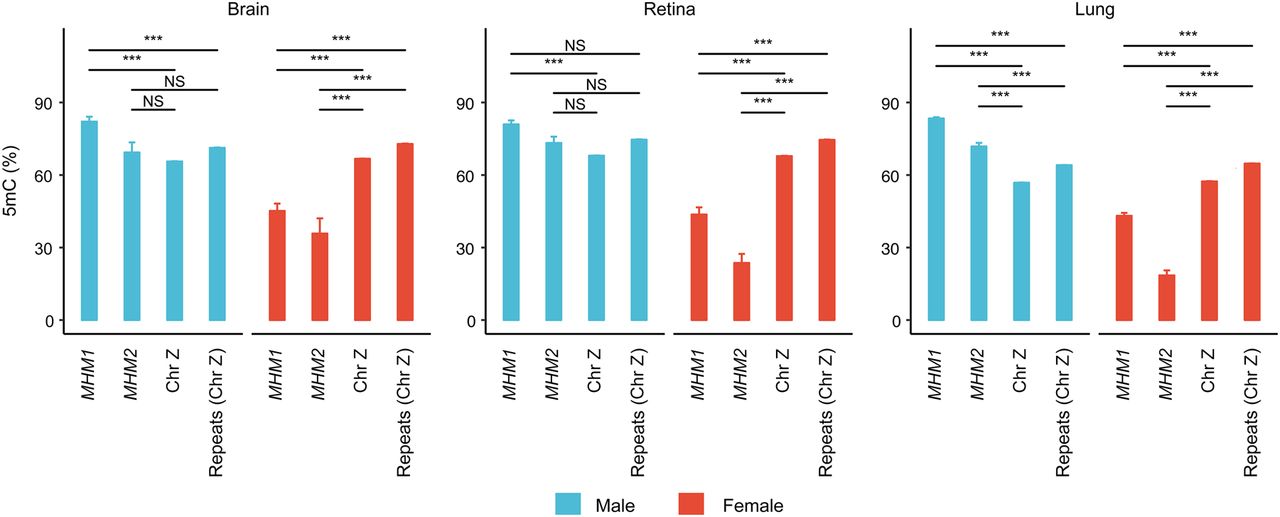

Figure 6.
Figure 6.

Hypomethylation of MHM loci relative to the entire Z Chromosome or repeats on the Z Chromosome in females. In the graphs, DNA methylation of MHM1 and MHM2 is compared with that of the Z Chromosome or repeats on the Z Chromosome for males and females. Coordinates of repetitive sequences were obtained from RepeatMasker track (last update: 2016-04-14) of the UCSC Table Browser. Statistical significance was evaluated using Mann–Whitney U tests. (***) P < 0.001, (NS) not significant.

This Article

  1. Published in Advance September 23, 2019, doi: 10.1101/gr.248641.119 Genome Res. 29: 1673-1684
