LTR retroelement expansion of the human cancer transcriptome and immunopeptidome revealed by de novo transcript assembly

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

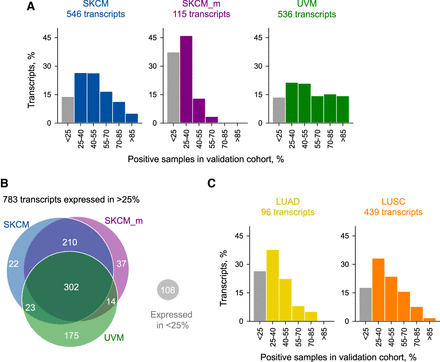

Figure 3.
Figure 3.

Validation of CLT expression prevalence. (A) Percentage of CLTs expressed in each bin of percentage of positive samples in larger cohorts of primary SKCM (n = 77), metastatic SKCM (SKCM_m; n = 318), or UVM (n = 31). (B) Number and overlap between melanoma types of CLTs that were validated in the larger cohorts, that is, expressed in >25% of cancer patient samples in the validation cohort. (C) Percentage of CLTs expressed in each bin of percentage of positive samples in larger cohorts of LUAD (n = 395) or LUSC (n = 338). Samples were considered positive if transcript expression level was more than three times that of the highest median in any normal tissue.

This Article

  1. Genome Res. 29: 1578-1590
