Figure 5.

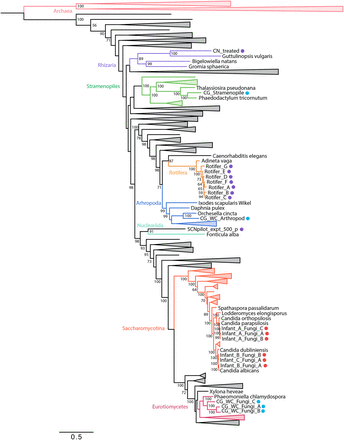

Phylogenetic placement of binned eukaryotic genomes with maximum likelihood analysis of 16 concatenated ribosomal protein alignments. Genomes from Crystal Geyser, infant-derived fecal samples, and thiocyanate reactor samples are identified with blue, red, and purple circles, respectively. Branches with greater than 50% bootstrap support are labeled with their bootstrap support. Reference ribosomal proteins were obtained from Hug et al. (2016), JGI (Grigoriev et al. 2011), and NCBI (NCBI Resource Coordinators 2017).
