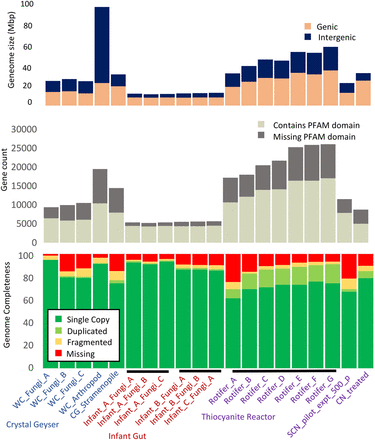

Figure 4.
Overview of binned eukaryotic genomes. Genomes that share greater than 99% average nucleotide identity (ANI) are indicated by black bars. ANI comparisons are shown in more detail in Supplemental Figure S3. Genic regions refer to sequence located within predicted gene models whereas intergenic refers to all other sequence. Genes containing a PFAM domain were identified with PfamScan (Mistry et al. 2007). Genome completeness is measured as the percent of 303 eukaryotic single-copy orthologous genes found within a genome in a particular form with BUSCO.
