Conserved microRNA targeting reveals preexisting gene dosage sensitivities that shaped amniote sex chromosome evolution

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 6.
Figure 6.

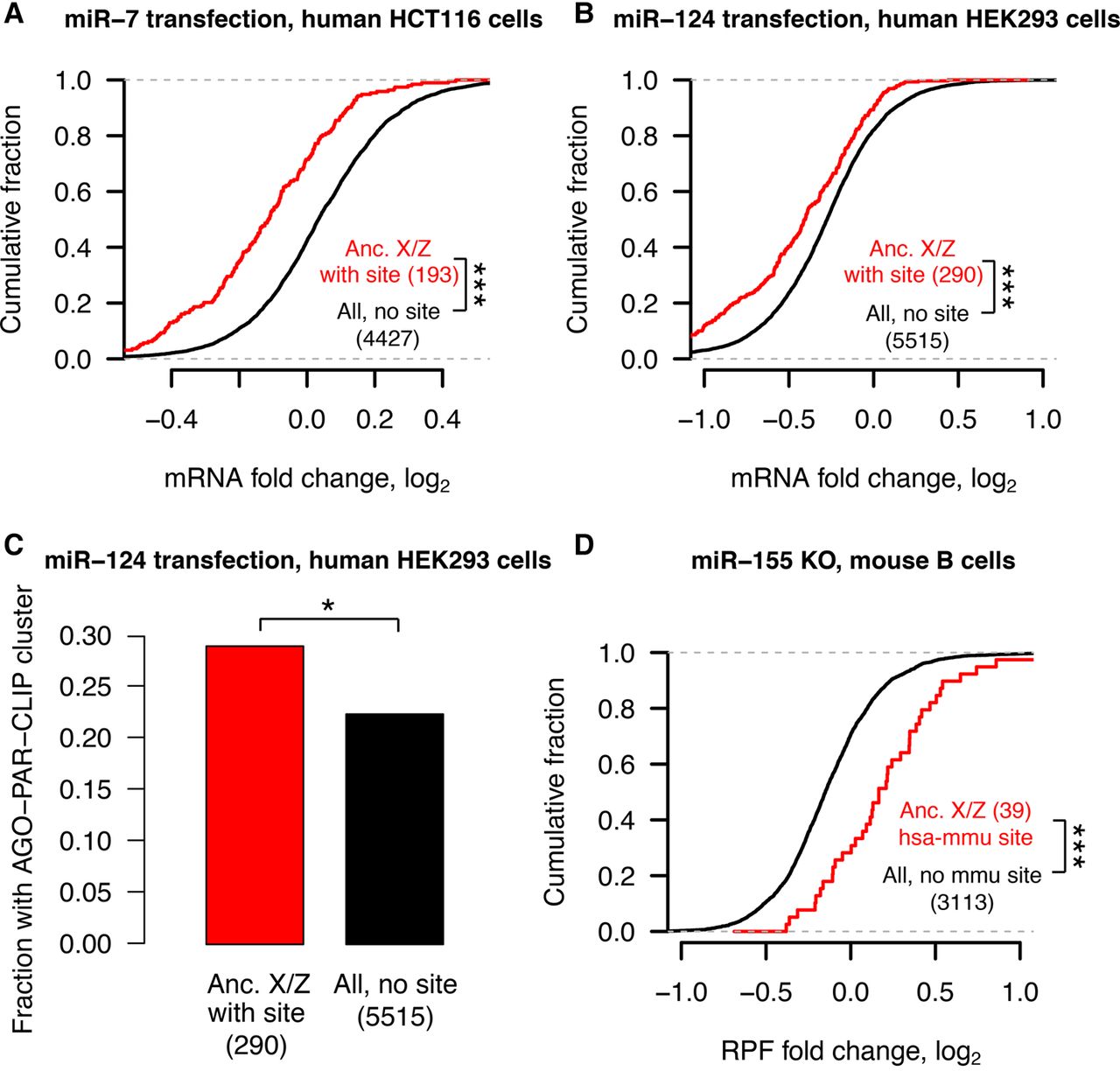

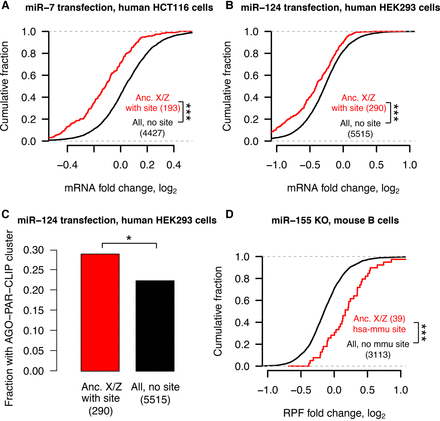

Analyses of experimental data sets validate miRNA target site function. Responses to transfection (AC) or knockout (D) of indicated miRNAs in human (AC) or mouse (D) cell types. Each panel depicts corresponding changes in mRNA levels (A,B), in fraction of Argonaute-bound genes (C), and in mRNA stability and translational efficiency as measured by ribosome protected fragments (RPF; D). In each case, X-linked genes and the human orthologs of Z-linked genes containing target sites with an assigned PCT score (red) for the indicated miRNA were compared with all expressed genes lacking target sites (black); gene numbers are indicated in parentheses. (A,B,D) (***) P < 0.001, two-sided Kolmogorov–Smirnov test. (C) (*) P < 0.05, two-sided Fisher's exact test.

This Article

  1. Genome Res. 28: 474-483
