Global transcriptional activity dynamics reveal functional enhancer RNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

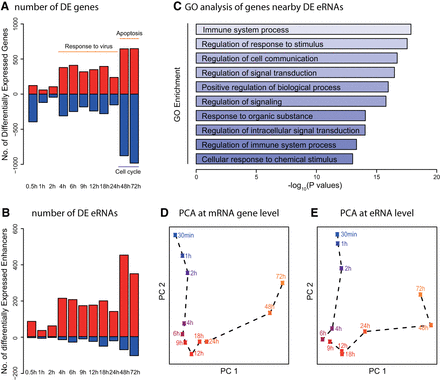

Figure 2.
Figure 2.

Analysis of differentially expressed genes. (A) Number of up- (red) and down- (blue) regulated genes in time course after virus infection. (B) Number of up- (red) and down- (blue) regulated enhancers through time course. (C) Bar plot of GO terms enriched in the nearest genes linked to the inducible enhancers. (D,E) First two principal components of PCA analysis based on mRNA (D) and eRNA (E) expression level. The plots are color-coded by time points: blue (early) and orange (late).

This Article

  1. Published in Advance October 23, 2018, doi: 10.1101/gr.233486.117 Genome Res. 28: 1799-1811
