Coregulation of ribosomal RNA with hundreds of genes contributes to phenotypic variation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

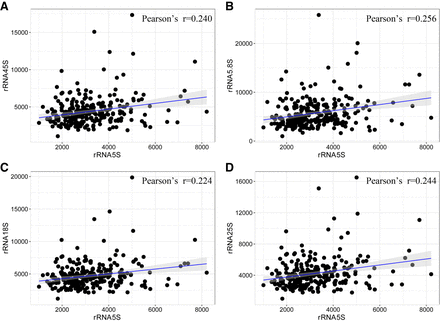

Figure 2.
Figure 2.

Evidence for the coevolution of 5S with 45S rRNA. (A) Correlation analysis between the CN of 5S and 45S rRNA (P-value = 0.0001). (B–D) Correlations between the CN of 5S and three components of 45S, including 5.8S (P = 3.366 × 10−5), 18S (P = 0.0003), and 25S (P = 7.942 × 10−5). The population size was n = 256, and r is the Pearson's coefficient.

This Article

  1. Published in Advance August 30, 2018, doi: 10.1101/gr.229716.117 Genome Res. 28: 1555-1565
