Coregulation of ribosomal RNA with hundreds of genes contributes to phenotypic variation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

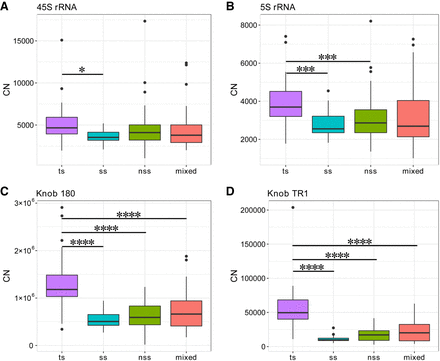

Figure 1.
Figure 1.

Comparisons of the copy number (CN) for 45S rRNA and other common repeat types among different subgroups of maize inbred lines. (A) 45S rRNA. Pairwise comparison showing that only the tropical/subtropical (ts) and stiff-stalk (ss) lines are significantly different (P = 0.025). (B) 5S rRNA. The ts are significantly different to the ss (0.0009) and nss lines (0.0011). (C,D) Two kinds of maize knob repeats. Knob 180 and Knob TR1 are significantly more abundant in the ts lines compared with any other subgroups (P < 0.0001). (nss) Non-ss lines. (*) P < 0.05, (***) P < 0.001, (****) P < 0.0001.

This Article

  1. Published in Advance August 30, 2018, doi: 10.1101/gr.229716.117 Genome Res. 28: 1555-1565
