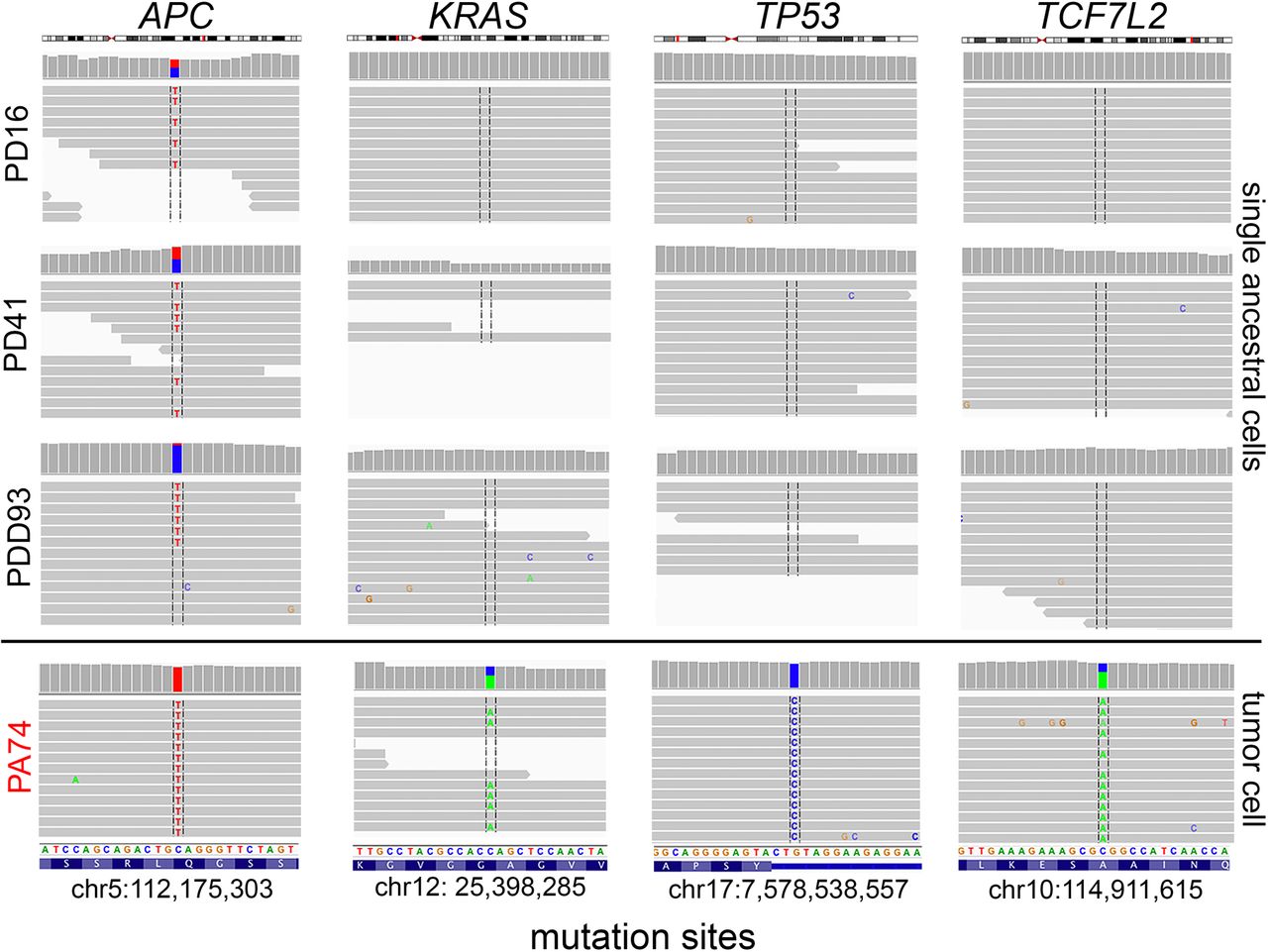

Figure 4.
Early APC progenitor cells detected in CRC1. Raw sequencing reads and variant alleles are plotted for three diploid APC progenitor cells (PD16, PD41, PDD93) and one representative primary tumor cell (PA74) from the major tumor population at genomic regions where mutations were detected in APC, KRAS, TP53, and TCF7L2. Plots and read counts were generated using the Integrative Genomics Viewer (IGV).
