An improved assembly and annotation of the allohexaploid wheat genome identifies complete families of agronomic genes and provides genomic evidence for chromosomal translocations

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

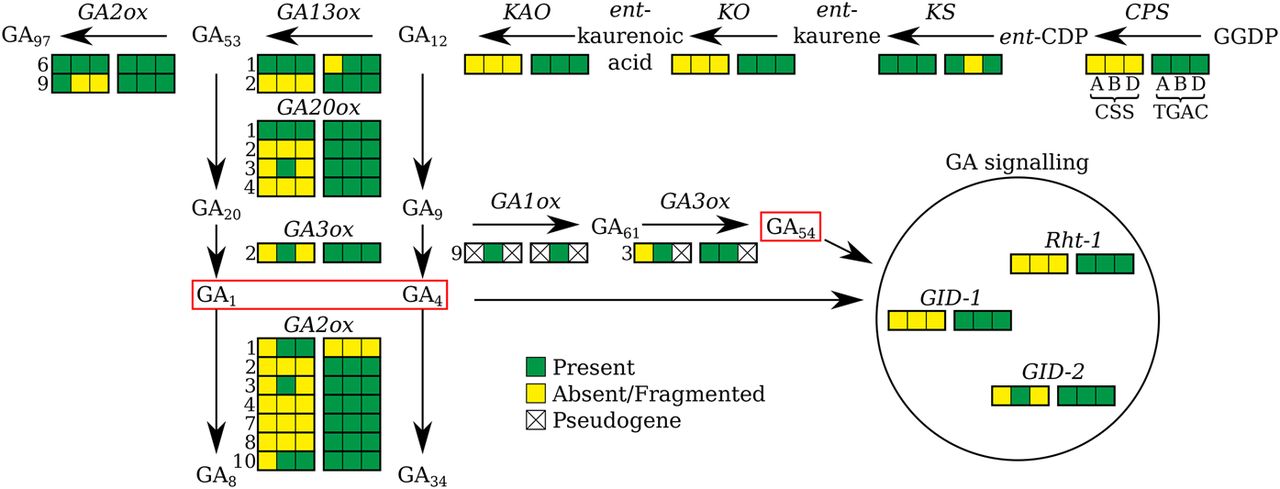

Figure 6.
Figure 6.

Genes encoding the gibberellin (GA) biosynthetic and signaling pathway in bread wheat. The GA biosynthesis, inactivation, and signal transduction pathway, illustrating the representation of the gene sequences in CSS and TGACv1 assemblies. If more than one paralog is known for a gene, its number according to the classification by Pearce et al. (2015) is indicated on the left of the box. Bioactive GAs are boxed in red.

This Article

  1. Published in Advance April 18, 2017, doi: 10.1101/gr.217117.116 Genome Res. 27: 885-896
