An improved assembly and annotation of the allohexaploid wheat genome identifies complete families of agronomic genes and provides genomic evidence for chromosomal translocations

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

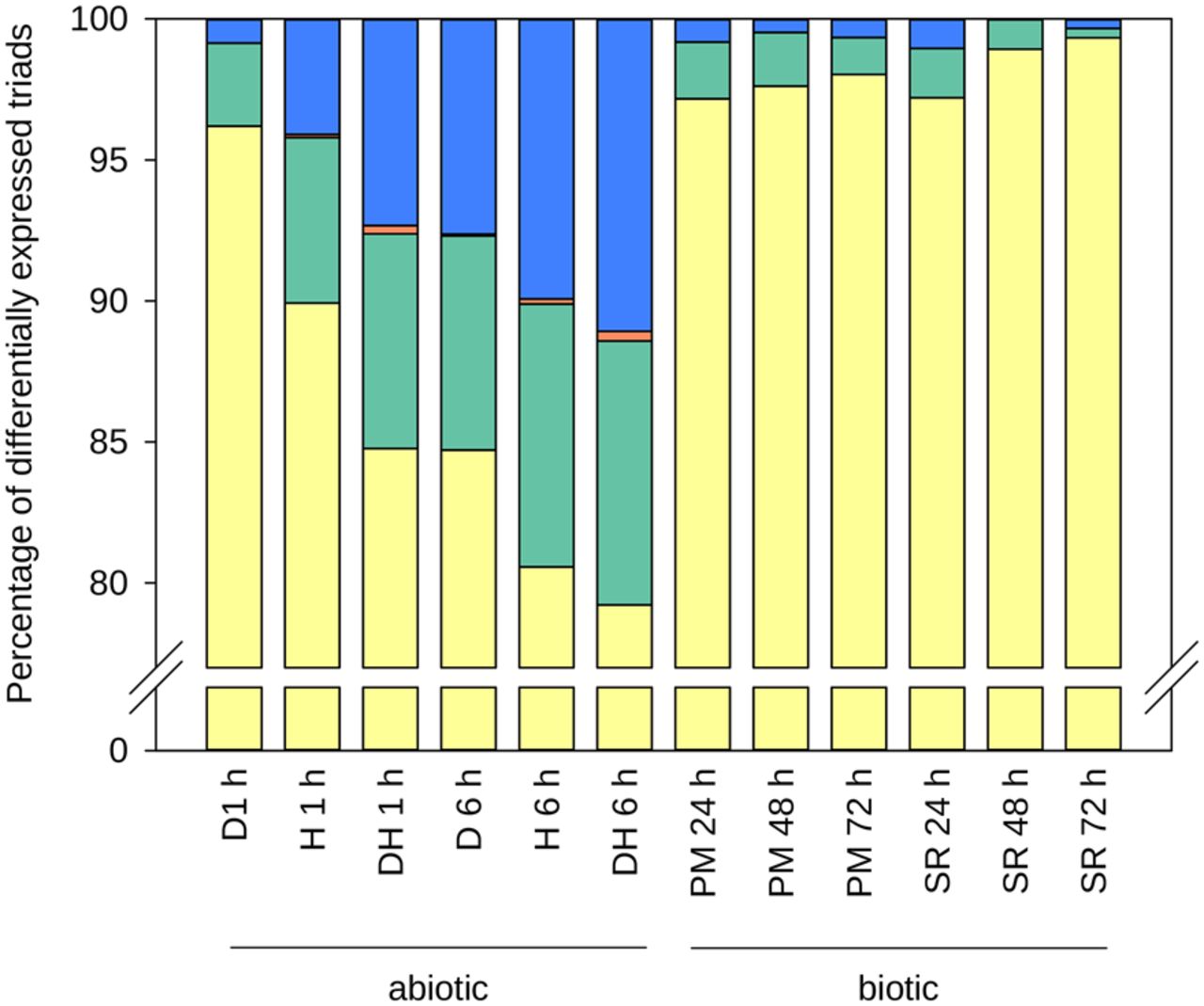

Figure 5.
Figure 5.

Response of differentially expressed (DE) triads to stress treatments according to the number and pattern of DE homoeologs. Triads were classified as having one homoeolog DE (yellow), two homoeologs DE with same direction of change (green), three homoeologs DE with same direction of change (orange), or opposite direction of change between DE homoeologs (blue). The stresses applied were drought (D), heat (H), drought and heat combined (DH), powdery mildew (PM), and stripe rust (SR), with the duration of stress application indicated in hours (h).

This Article

  1. Published in Advance April 18, 2017, doi: 10.1101/gr.217117.116 Genome Res. 27: 885-896
