Evolution of transcript modification by N6-methyladenosine in primates

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

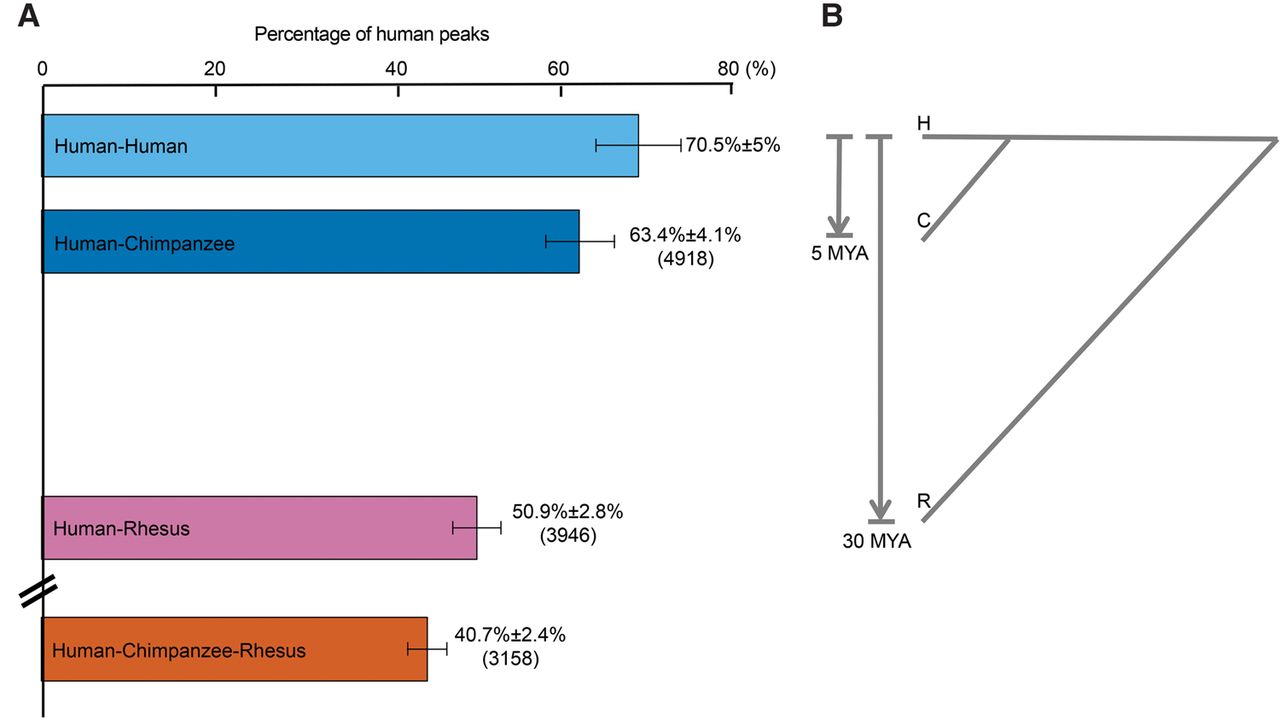

Figure 1.
Figure 1.

Interspecies m6A peaks comparison. (A) We compared the m6A peaks and plotted the percentage of the shared peaks between individuals (H–H, H–C, H–R, and H–C–R) by parsing all possible combinations. The mean was plotted as the bars; error bar, SD. The “Human–Human” bar was plotted as a reference of zero diverged time to human. From the top to the bottom: pairwise comparison between two human individuals, pairwise comparison between human and chimpanzee (4918 peaks), pairwise comparison between human and rhesus (3946 peaks), and three-way comparison across human, chimpanzee, and rhesus (3158 peaks). (B) Divergence time between species.

This Article

  1. Published in Advance January 4, 2017, doi: 10.1101/gr.212563.116 Genome Res. 27: 385-392
