Novel determinants of mammalian primary microRNA processing revealed by systematic evaluation of hairpin-containing transcripts and human genetic variation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 6.
Figure 6.

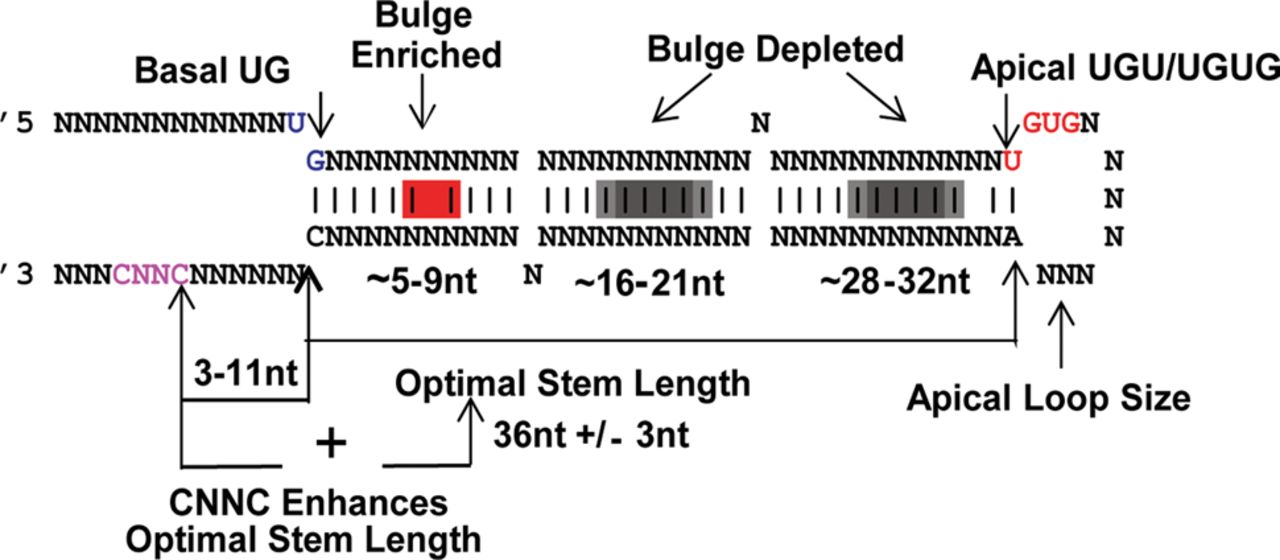

Summary of hairpin features influencing processing. Diagram of hairpin features that influence processing. An optimal stem length of 36 ± 3 nt is favorable for processing, and the appearance of bulges in the two bulge-depleted regions inhibits processing. The CNNC motif preferentially enhances the processing of optimal length pri-miRNAs and has to locate within a distance limit from the base of the hairpin. In addition, other primary sequence motifs and structural features, including basal UG, apical UGU/UGUG, loop size, and a bulge-enriched region, are highlighted.

This Article

  1. Published in Advance January 13, 2017, doi: 10.1101/gr.208900.116 Genome Res. 27: 374-384
