Specific down-regulation of spermatogenesis genes targeted by 22G RNAs in hybrid sterile males associated with an X-Chromosome introgression

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 7.
Figure 7.

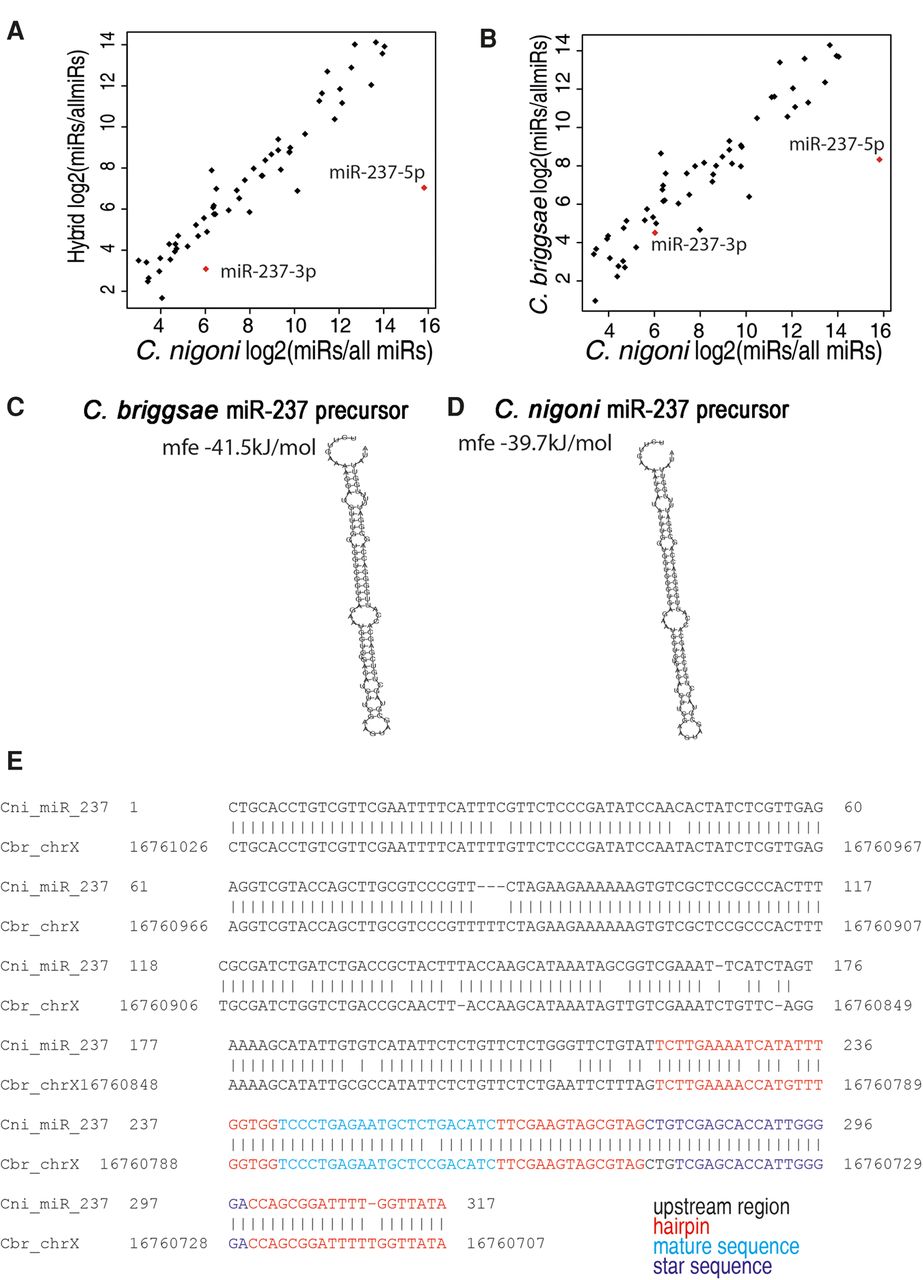

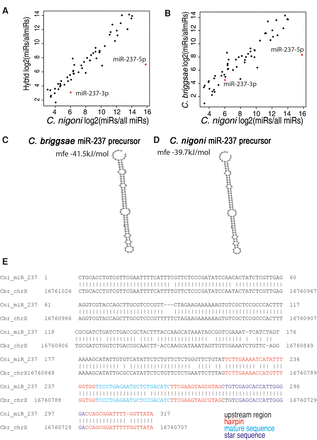

miR-237 is differentially expressed between males of ZY10330 and C. nigoni. (A,B) Scatterplots showing miRNA read counts in C. nigoni (x-axis) against either hybrid males (A) or C. briggsae (B). miR-237 mature (5p) and star (3p) are highlighted. (C,D) Secondary structure predictions of the miRNA precursors in C. briggsae and C. nigoni. Predictions were made by RNAfold. (E) Alignment of mir-237 genomic locus in C. briggsae and C. nigoni showing some sequence divergence in the putative promoter region.

This Article

  1. Published in Advance May 18, 2016, doi: 10.1101/gr.204479.116 Genome Res. 26: 1219-1232
