Novel features of telomere biology revealed by the absence of telomeric DNA methylation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

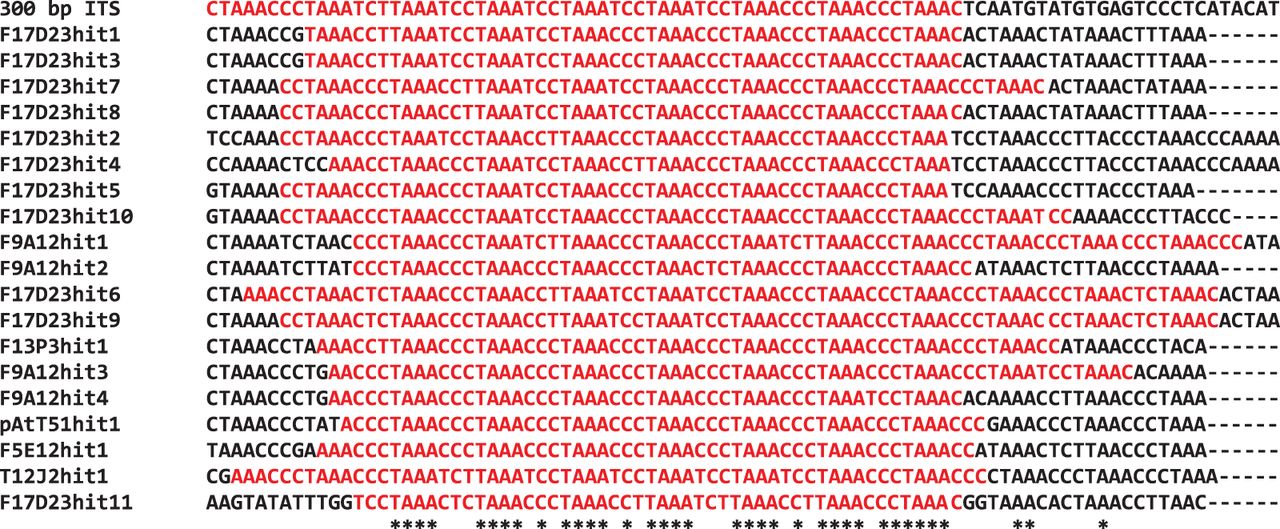

Figure 1.
Figure 1.

Major Arabidopsis ITSs containing perfect telomeric repeats. Genomic DNA sequences containing (YYYTAAA)7 strings and several nucleotides upstream and downstream were aligned using the computer program, CLUSTALW. These sequences were identified using the PatMatch tool and the TAIR10 Whole Genome database (BAC clones) in The Arabidopsis Information Resource (TAIR; http://www.Arabidopsis.org). The name of the clones corresponding to each sequence is indicated as well as the hit corresponding to each clone. The right border of the 300-bp ITS is included in the alignment. Red letters label DNA sequences that continuously follow the (YYYTAAA)n pattern. Asterisks mark conserved residues.
