Evidence for the fixation of gene duplications by positive selection in Drosophila

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

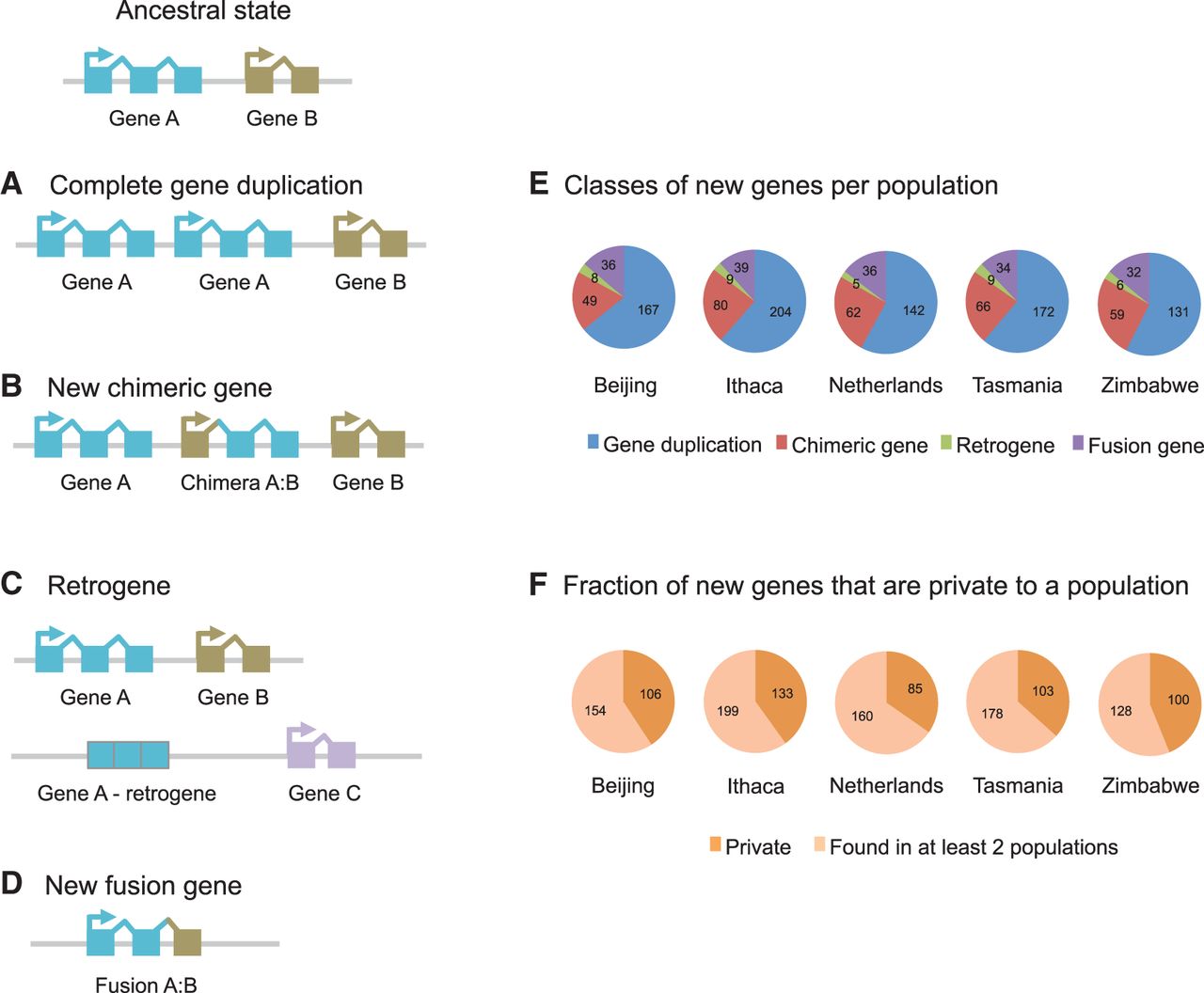

Figure 1.
Figure 1.

Characterization of the set of new genes segregating in the GDL. (A–D) Schematic representation of the different classes of new genes investigated in this study created by duplications (A–C) and deletions (D). Details on the formation of chimeric genes (B) in Supplemental Figure 1. (E) Counts of the different classes of new genes in each population. (F) Number of new genes that are private to one population versus those found in more than one population.

This Article

  1. Published in Advance April 12, 2016, doi: 10.1101/gr.199323.115 Genome Res. 26: 787-798
