Genome-wide A-to-I RNA editing in fungi independent of ADAR enzymes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

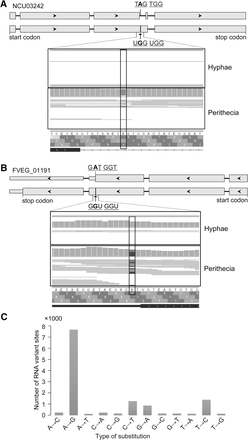

Figure 6.
Figure 6.

A-to-I RNA editing in Neurospora crassa and Fusarium verticillioides. RNA editing in transcripts of the PUK1 orthologs in N. crassa (A) and F. verticillioides (B). The gene structure based on automated annotation (upper) differs from the actual cDNA sequence (lower) identified by RNA-seq analysis. Rectangle boxes are coding regions, and black arrowheads indicate the direction. In N. crassa, NCU03242 is specifically expressed in perithecia, and its UA1628G stop codon (marked with a black vertical line) corresponding to UA1831G of PUK1 was edited to UGG. In F. verticillioides, RNA editing of UA1836G in FVEG_01191 (black vertical line) corresponding to UA1834G of PUK1 was also only observed in perithecia. (C) Numbers of labeled RNA variant sites identified in RNA-seq data of perithecia in F. verticillioides.
