APOBEC-induced mutations in human cancers are strongly enriched on the lagging DNA strand during replication

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

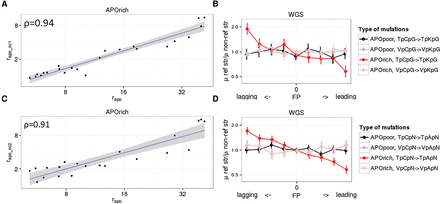

Figure 4.
Figure 4.

Noncanonical mutation signatures of APOBEC3. Properties of TpCpS → TpKpS (noncanonical mutation type 1, nc1) (A,B) and TpCpN → TpApN (noncanonical mutation type 2, nc2) (C,D) induced by APOBEC3. (A,C) Correlations of enrichments of noncanonical (rapo_nc1 and rapo_nc2) and canonical rapo APOBEC3-induced mutations across tumors. (B,D) The ratio of the mutation rates of the considered mutation type to its reverse compliment on the reference strand as a function of the propensity of the replication fork to replicate the reference strand as lagging or leading. Horizontal axis in C and D: genome split by FP values into nine bins from low (bin 1) to high (bin 9). Vertical bars represent 95% confidence interval. Analysis performed using WGS data set.
