Genome-wide identification and characterization of transcription start sites and promoters in the tunicate Ciona intestinalis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

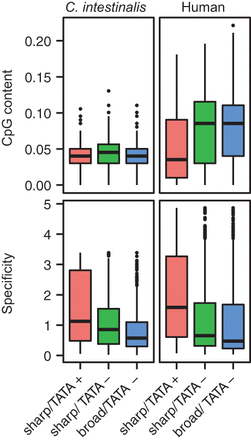

Figure 4.
Figure 4.

CpG content and expression specificity. The CpG content was calculated in each core promoter sequence (−100 to +99) in each promoter class. The CpG content was defined as the number of CpG sites divided by (N − 1), where N is the length of the core promoter sequence (200 bp). The expression specificity was evaluated by relative entropy (see Supplemental Methods).

This Article

  1. Published in Advance December 14, 2015, doi: 10.1101/gr.184648.114 Genome Res. 26: 140-150
