Genome-wide analysis of translational efficiency reveals distinct but overlapping functions of yeast DEAD-box RNA helicases Ded1 and eIF4A

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

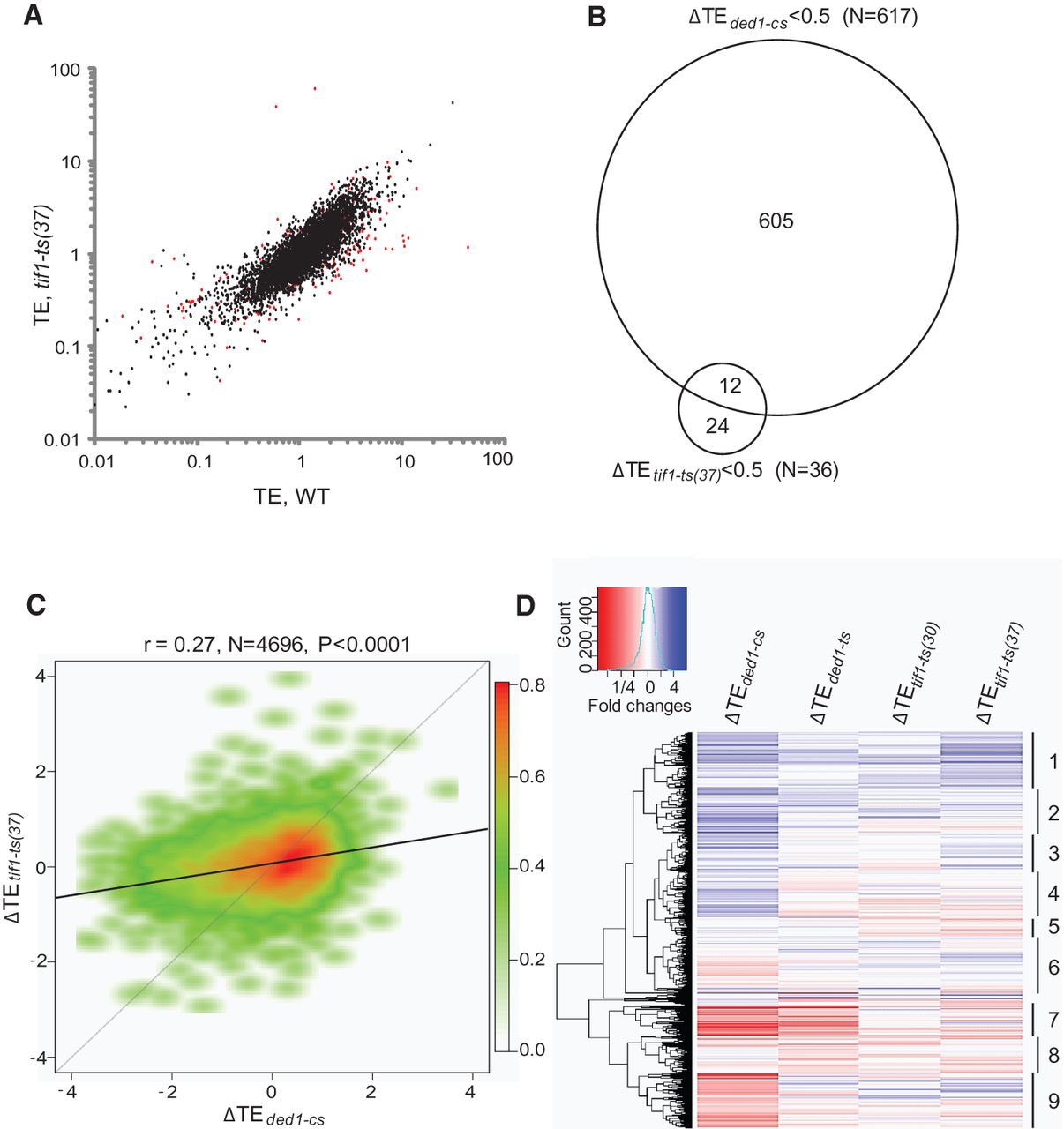

Figure 2.
Figure 2.

A significant number of genes require both Ded1 and eIF4A for WT translation. (A) Scatterplot of TE of tif1-ts versus WT cells at 37°C, with 68 genes showing a ≥twofold change in the mutant at FDR < 0.01, colored red. (B) Venn diagram of genes exhibiting ≥twofold reductions in tif1-ts (at 37°C) and ded1-cs strains. (C) Smooth scatterplot of the indicated log2 ΔTE values, generated as in Figure 1E. (D) Hierarchical clustering analysis of absolute ΔTE values for 4696 expressed genes from the indicated mutant versus WT comparisons (excluding genes with >64-fold changes in TE) as a heat map using the R heatmap.2 function from the R “gplots” library, using the default hclust hierarchical clustering algorithm.

This Article

  1. Genome Res. 25: 1196-1205
