Core promoter sequence in yeast is a major determinant of expression level

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

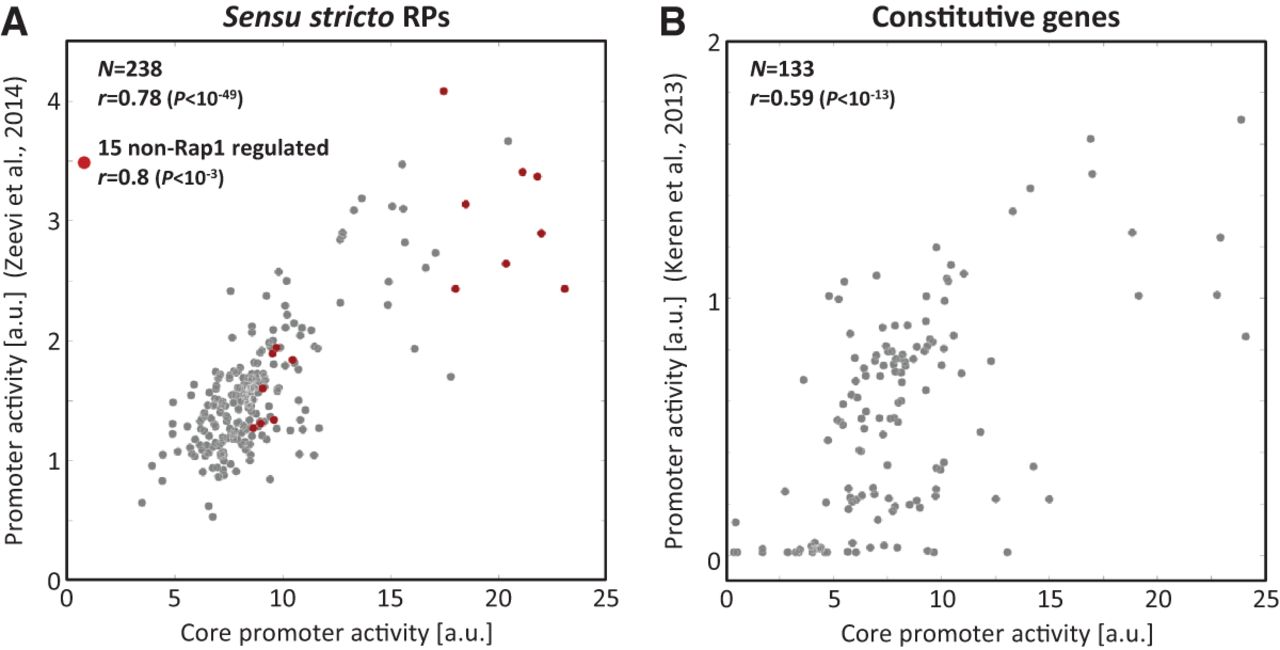

Figure 2.
Figure 2.

Core promoter activity is highly correlated to the activity of the entire promoter. (A) A comparison of our core promoter activity measurements (x-axis) to previously measured promoter activities (y-axis) for 238 Saccharomyces sensu stricto RP promoters (Zeevi et al. 2014) reveals a high correlation between the two measures. Dark red dots mark promoters that are not regulated by Rap1. (B) Similar to A for 133 constitutively expressed S. cerevisiae genes (Keren et al. 2013).

This Article

  1. Published in Advance May 12, 2015, doi: 10.1101/gr.188193.114 Genome Res. 25: 1008-1017
