Sumoylation of Rap1 mediates the recruitment of TFIID to promote transcription of ribosomal protein genes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

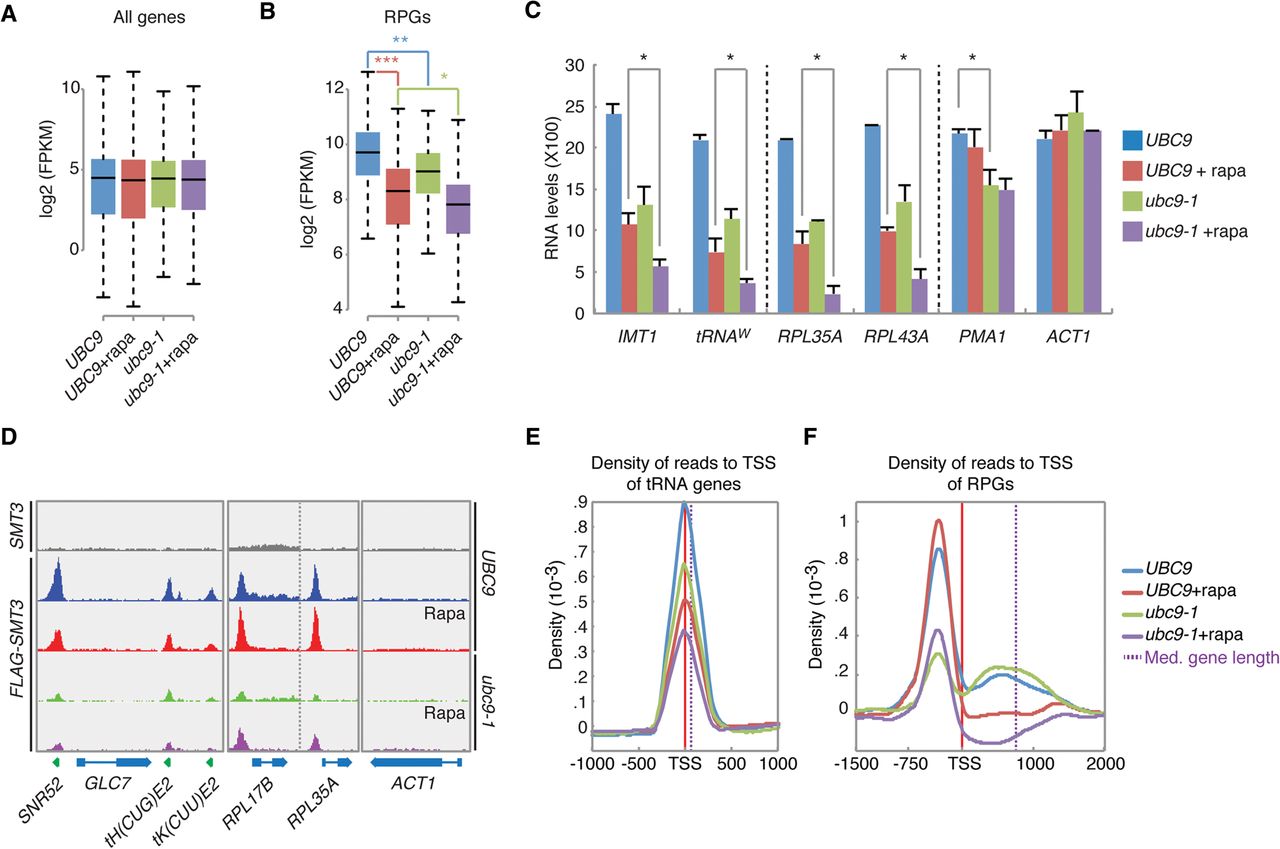

Ubc9 and TORC1 cooperate in regulation of transcription. (A) The global transcriptome is not affected by either Ubc9 or TORC1. WT cells and ubc9-1 mutants were treated for 30 min with 100 nM rapamycin (rapa) or with DMSO before RNA-seq. Potential differences between groups were tested with a two-sided Mann-Whitney U test. (B) Transcription of RPGs is regulated by both TORC1 and Ubc9. Cells were treated and RNA analyzed as in A. Differences between groups were tested as in A. (*) P = 0.008192; (**) P = 7.182 × 10−6; (***) P = 1.691 × 10−15. (C) Targeted qPCR experiment. Error bars, SEM of three independent experiments. (*) P < 0.01. (D) Snapshots of Sumo ChIP-seq in WT cells and ubc9-1 mutants treated with DMSO or rapamycin. (E,F) Metagene analysis of Sumo patterns at tDNA (E) and RPGs (F).

This Article

  1. Genome Res. 25: 897-906
