Genomic redistribution of GR monomers and dimers mediates transcriptional response to exogenous glucocorticoid in vivo

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

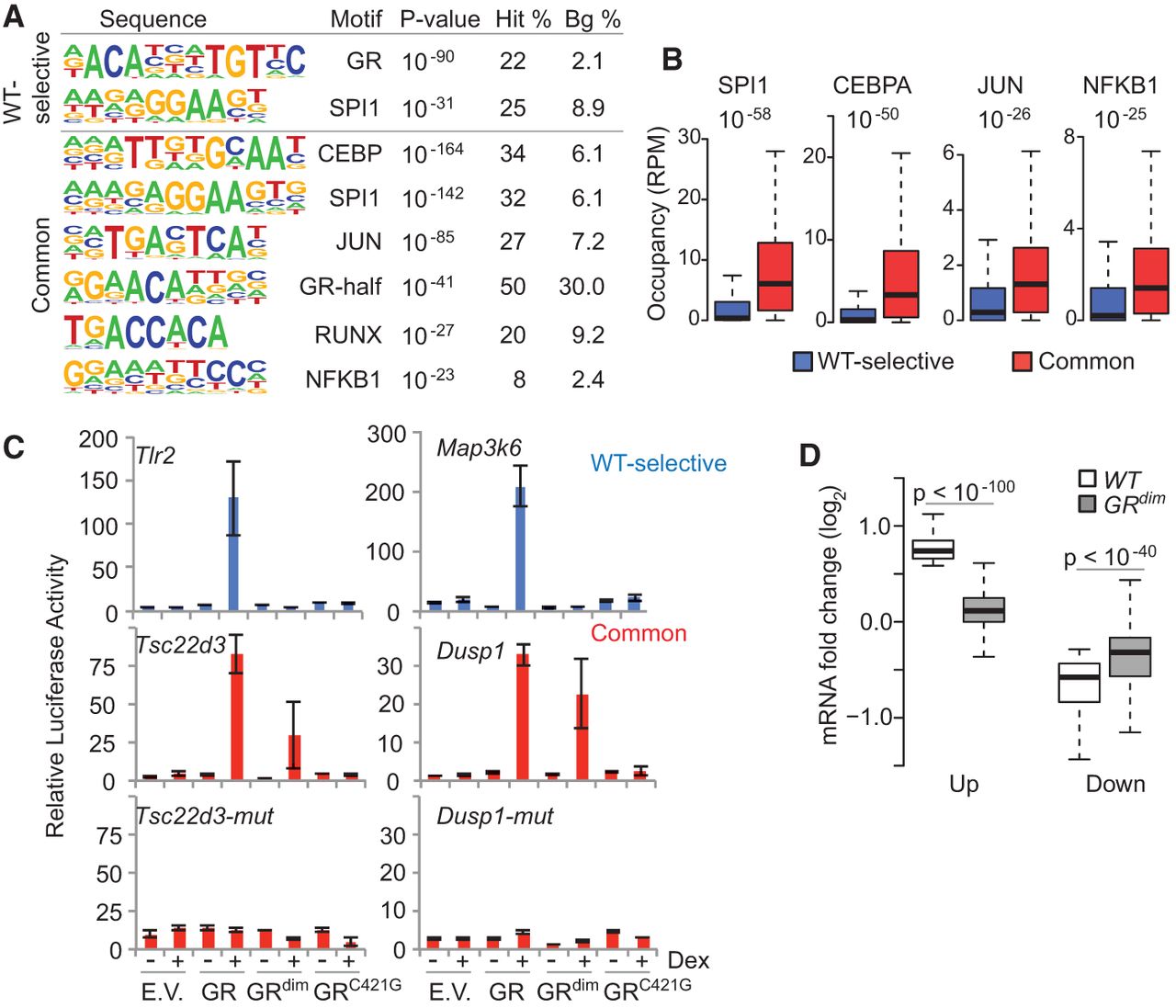

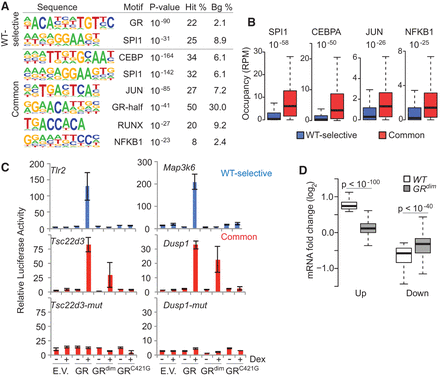

Figure 5.
Figure 5.

GRdim partitions the GR cistrome in primary macrophages. (A) Top-ranked de novo motifs from HOMER for the WT-selective and common GR binding sites from ChIP-seq in primary macrophages. Comprehensive motif results are reported in the Supplemental Material. (B) Box plots interrogating the co-occupancy of macrophage TFs at GR binding sites. (C) Regions named after the nearest gene that include WT-selective and common sites were assayed by a luciferase reporter in the absence (−) or presence (+) of dexamethasone (Dex) and cotransfection of empty vector (E.V.), GR, GRdim, or the DNA-binding mutant GRC421G. (D) Response of WT-regulated genes (up or down) from LPS- and dex-treated macrophages in GRdim-derived macrophages under the same treatment.
