Extensive microRNA-mediated crosstalk between lncRNAs and mRNAs in mouse embryonic stem cells

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

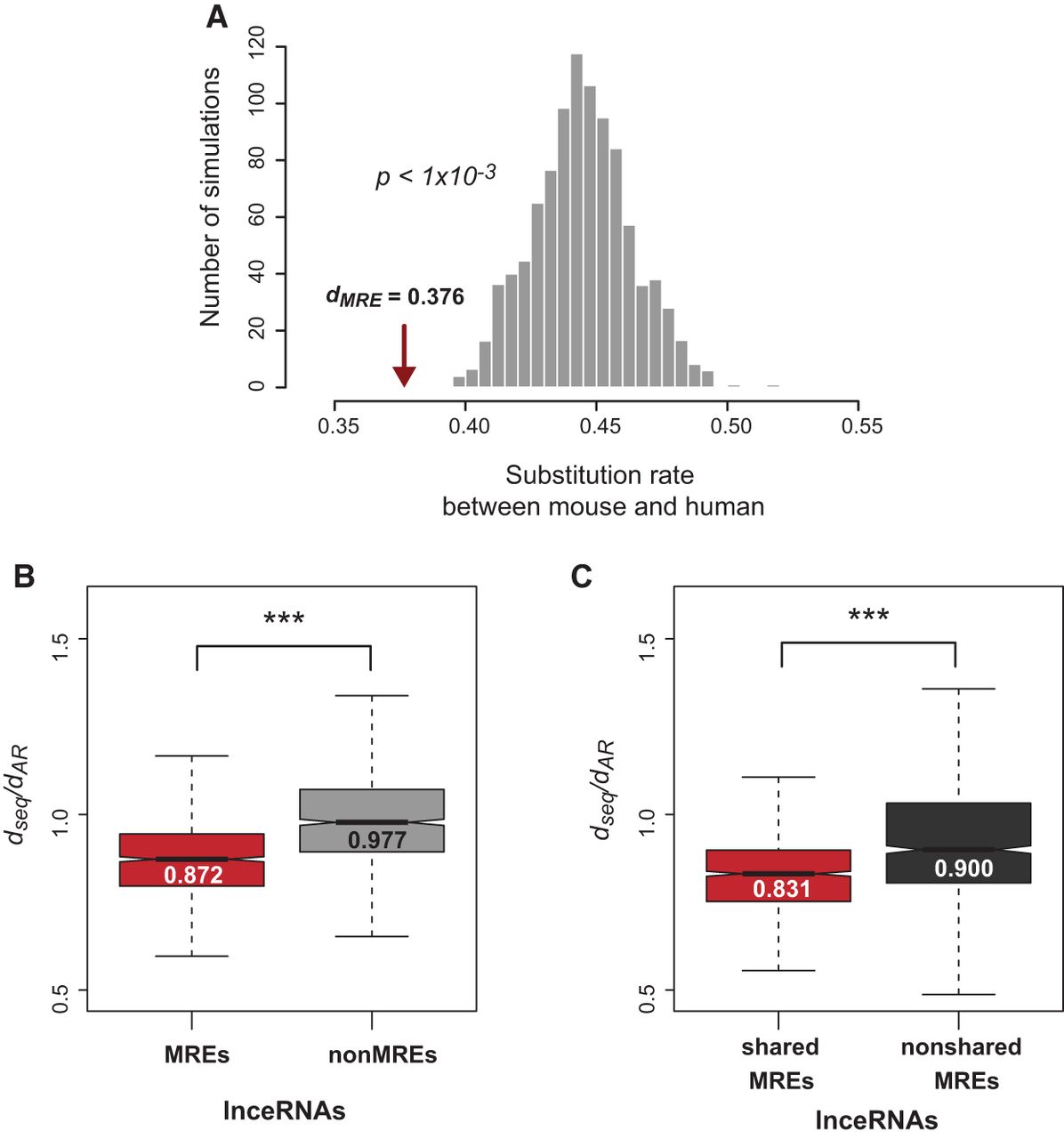

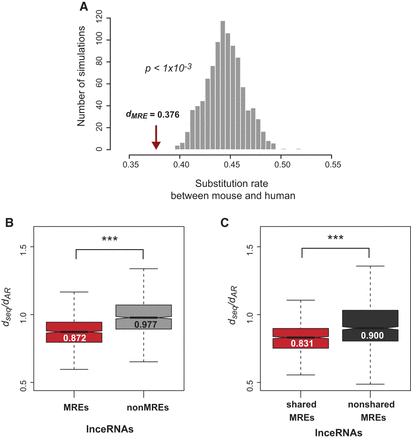

MiRNA response elements shared between lnceRNAs and ceRNAts are conserved through mammalian evolution. (A) Histogram representing the substitution rate between mouse and human for a neutrally evolving sequence in the vicinity of lnceRNA MREs with the same length (ancestral repeats, ARs). Vertical arrow represents the substitution rate estimated for lnceRNA MREs (dMRE = 0.376). (B) Distribution of nucleotide substitution rate normalized by neutral local rate, between mouse and human, for predicted MREs (dMRE/dAR = 0.872, red) and non-MREs (dnonMRE/dAR = 0.977, gray) sequence within lnceRNAs. (C) Distribution of mouse-human substitution rate normalized by neutral local rate, measured at MREs shared between lnceRNAs and their ceRNAts (red, dMRE-shared/dAR = 0.831) and MREs for miRNAs not shared between lnceRNA and their targets (gray, dMRE-nonshared/dAR = 0.900). (***) P < 0.001.

This Article

  1. Published in Advance March 19, 2015, doi: 10.1101/gr.181974.114 Genome Res. 25: 655-666
