Genetic and phenotypic intra-species variation in Candida albicans

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

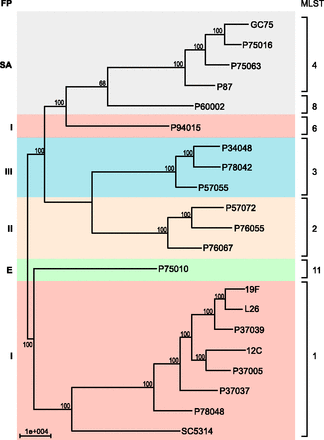

Phylogenetic relationship and clade assignment of studied isolates. The phylogenetic relationship of the strains was inferred based on 112,223 informative SNP positions using maximum parsimony in PAUP*; node labels indicate the support frequency of 1000 bootstrap replicates. Clades were assigned based on multilocus sequence type (MLST) analysis of seven loci or prior work reporting fingerprint clades (FP).
