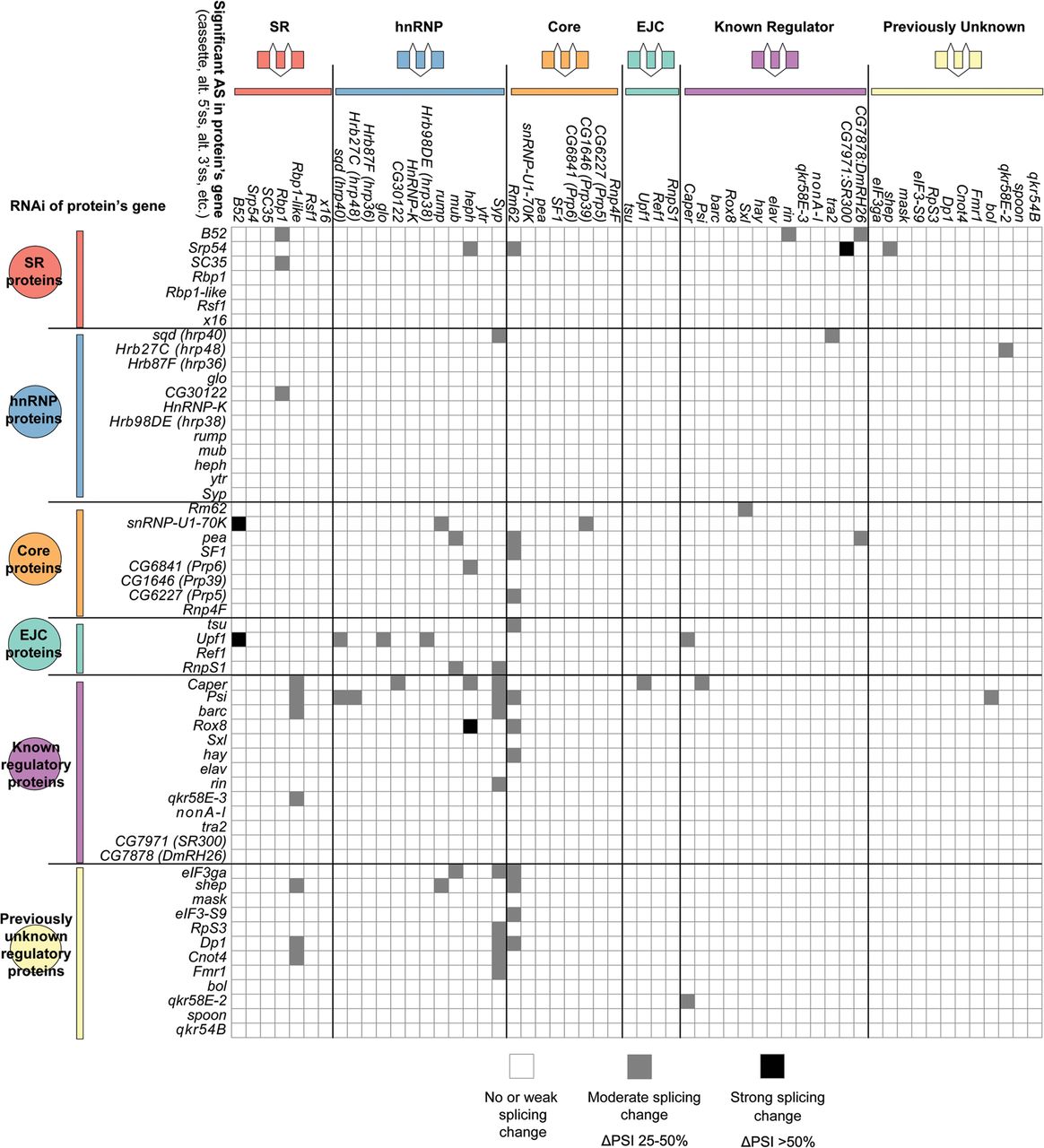

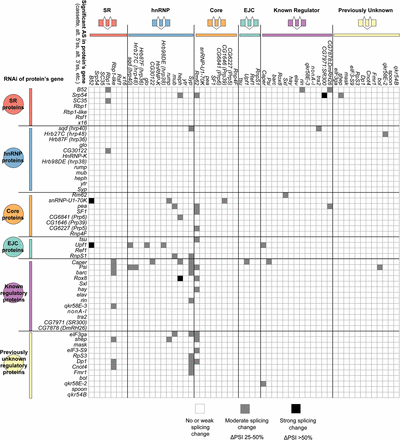

Figure 2.
Cross-regulatory splicing networks involving the 56 RNA binding proteins. Based on validation experiments and manual inspection of RNA-seq data, we report observed cross-regulatory effects for moderate to strong splicing changes reported by JuncBASE. The cross-regulation of one protein affecting a splicing event of another protein's pre-mRNA is indicated in the matrix. Although splicing events are diagrammed as cassette exons, effects on all forms of alternative splicing are reported.
