Zelda is differentially required for chromatin accessibility, transcription factor binding, and gene expression in the early Drosophila embryo

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

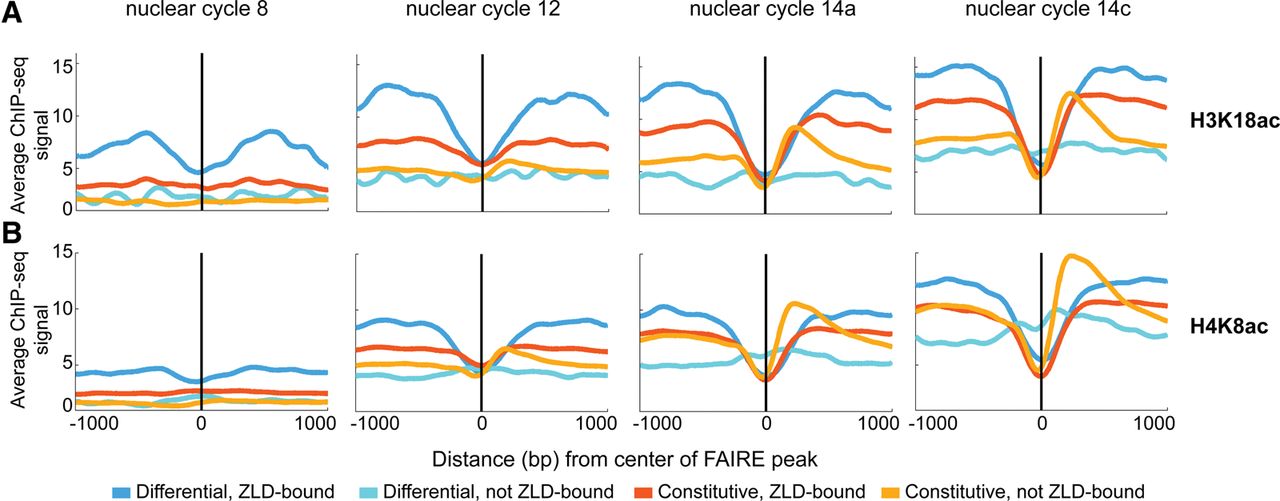

Figure 4.
Figure 4.

Early histone acetylation is enriched around loci that require Zld for chromatin accessibility. (A,B) Distribution of ChIP-seq signals for H3K18ac (A) and H4K8ac (B) surrounding individual classes of FAIRE peaks at specific nuclear cycles during the early stages of embryonic development. Colors indicate the different FAIRE classes. Plots are centered on the FAIRE peak and oriented relative to the transcription start site of the nearest gene.

This Article

  1. Published in Advance September 2, 2015, doi: 10.1101/gr.192682.115 Genome Res. 25: 1715-1726
