Cooperative target mRNA destabilization and translation inhibition by miR-58 microRNA family in C. elegans

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

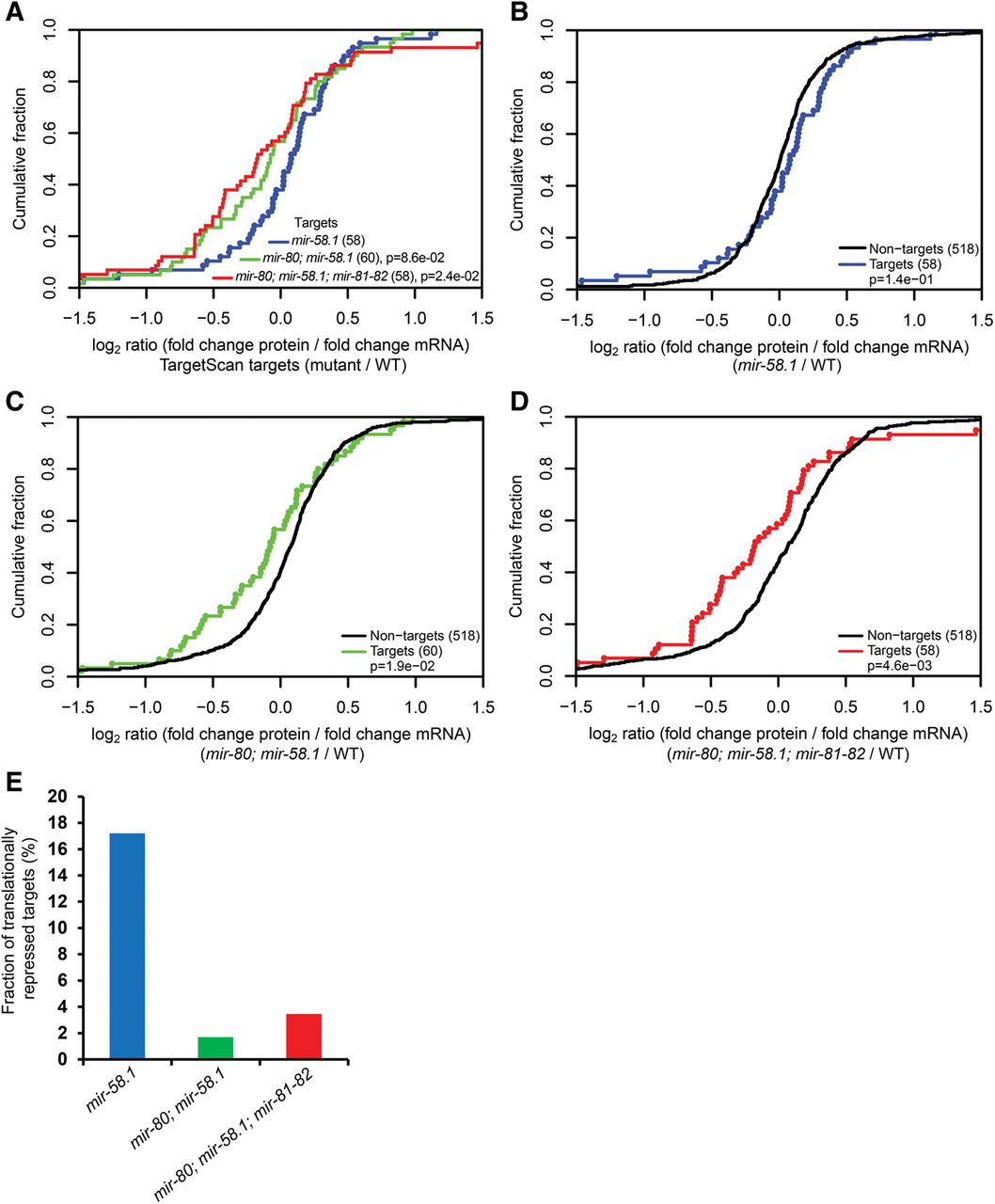

Figure 3.
Figure 3.

Reduced relative translation efficiency of miR-58 targets in multiple, but not single, miR-58 family mutants. (AD) Translational efficiency calculated as log2 (fold change protein abundance/fold change mRNA abundance) for targets and 518 nontargets. P-values were calculated using a KS test comparing the fold change distributions (log2) of targets in mir-80; mir-58.1 double and mir-80; mir-58.1; mir-81-82 quadruple mutants to the mir-58.1 single mutant (A) and of targets to nontargets (BD). (E) Release of translational inhibition is particularly prominent in the single mir-58 mutant. Fraction of translationally repressed [log2 fold change protein abundance (mutant/WT) > 0.05, log2 mRNA abundance (mutant/WT) < 0.05] TargetScan-predicted targets in mir-58.1 single, mir-80; mir-58.1 double, and mir-80; mir-58.1; mir-81-82 quadruple mutants.
