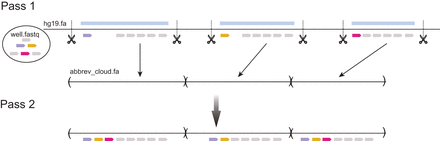

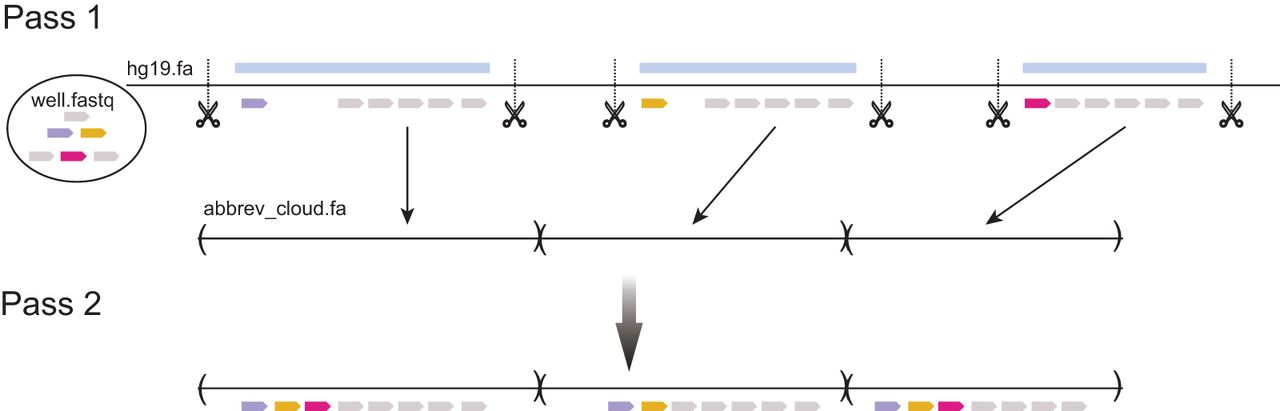

Figure 5.
Abbreviated reference framework. The framework for generating putative long reads and associated short-read alignments to these segments: (1) Reads are aligned to hg19 at most once in pass1; (2) putative long read segments are identified and spliced together to create an abbreviated reference; and (3) reads are aligned again in pass2 to this abbreviated reference allowing multiple mappings.
