Defining heterochromatin in C. elegans through genome-wide analysis of the heterochromatin protein 1 homolog HPL-2

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

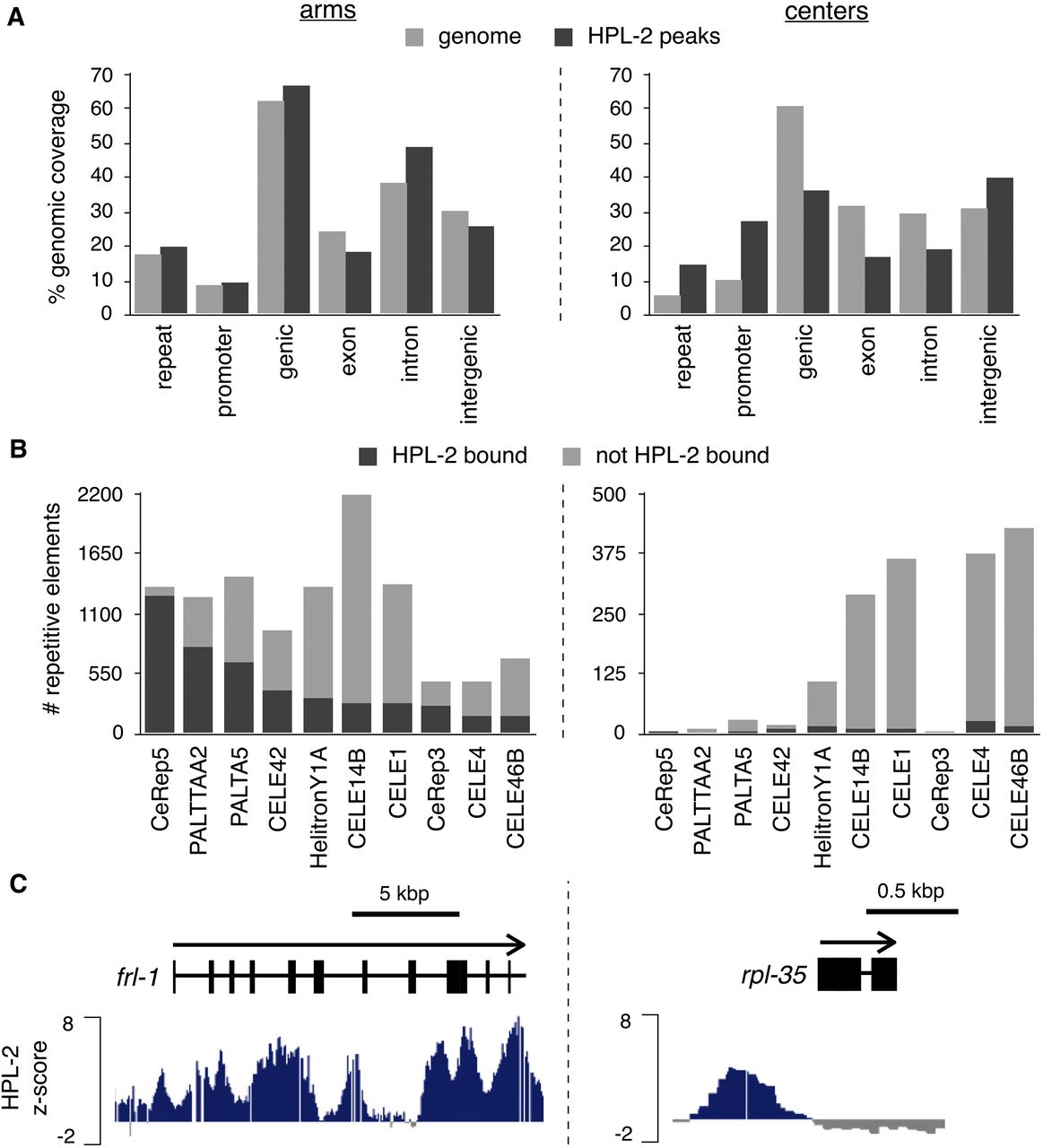

Figure 4.
Figure 4.

HPL-2 in arms versus centers is distributed differently over genomic features. (A–C) Analysis of HPL-2 in chromosome arms (left) versus centers (right). (A) Percentage of the genome in six genomic feature categories (repeat, promoter, genic, exon, intron, and intergenic) and percentage of the genome in those six categories covered by HPL-2 peaks. (B) Classes of repetitive elements that have the highest number of repeats bound by HPL-2. (C) Mean Z-scores of HPL-2 ChIP-chip signal over individual genes.

This Article

  1. Published in Advance December 2, 2014, doi: 10.1101/gr.180489.114 Genome Res. 25: 76-88
