Characterization of the neural stem cell gene regulatory network identifies OLIG2 as a multifunctional regulator of self-renewal

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

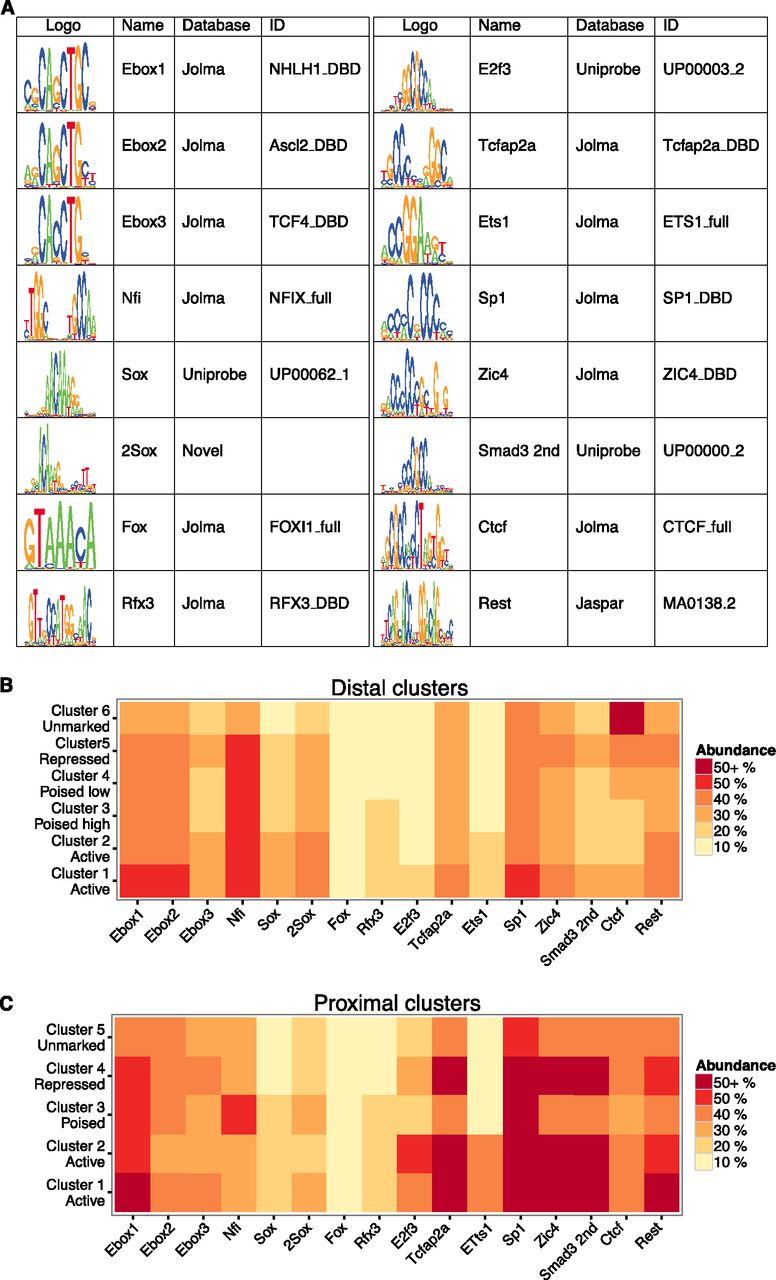

Figure 4.
Figure 4.

Differential TF motif enrichment within the different CRE classes. (A) The set of 16 TF motifs found to be enriched in at least one of the different DHS clusters (see Methods). Motif logos, the name employed in this study, and the motif database source and respective identifier are presented. (B,C) Heatmap representation of the abundance of the 16 TF motifs in each of the distal (B) and proximal (C) clusters of DHSs, binned in 10% intervals.

This Article

  1. Published in Advance October 7, 2014, doi: 10.1101/gr.173435.114 Genome Res. 25: 41-56
