Diversity of miRNAs, siRNAs, and piRNAs across 25 Drosophila cell lines

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

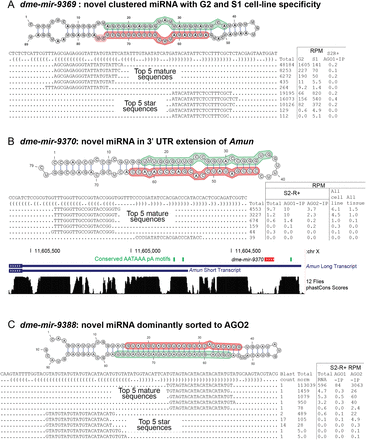

Figure 3.
Figure 3.

Examples of novel Drosophila miRNA loci. (A) A new member of the mir-972→979 cluster, namely, dme-mir-9369, which exhibits specificity for S1 and G2 cells (similar to other cluster members) (Fig. 2D). (B) dme-mir-9370 is a miRNA present in an alternative 3′ UTR extension of Amun. (C) dme-mir-9388 is a miRNA hairpin with an unusually paired miRNA/star duplex, whose small RNAs are strongly sorted to AGO2, the siRNA effector.

This Article

  1. Published in Advance July 1, 2014, doi: 10.1101/gr.161554.113 Genome Res. 24: 1236-1250
