Comparison of D. melanogaster and C. elegans developmental stages, tissues, and cells by modENCODE RNA-seq data

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

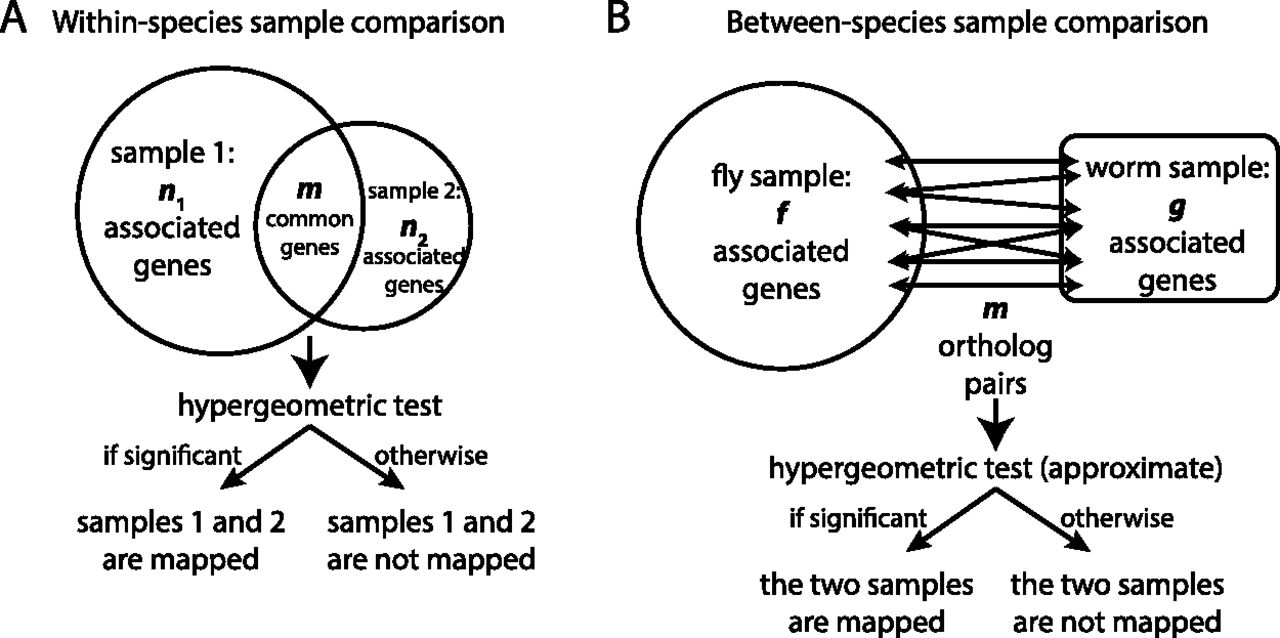

Approaches for comparing transcriptomes of samples. (A) Approach for comparing two biological samples within a species. A hypergeometric test is used to test whether the overlap in their associated genes is significant. (B) Approach for comparing two biological samples between two species. An approximate hypergeometric test is used to test the significance of the number of orthologous gene pairs in their associated genes.

This Article

  1. Published in Advance July 1, 2014, doi: 10.1101/gr.170100.113 Genome Res. 24: 1086-1101
