The spring-loaded genome: Nucleosome redistributions are widespread, transient, and DNA-directed

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

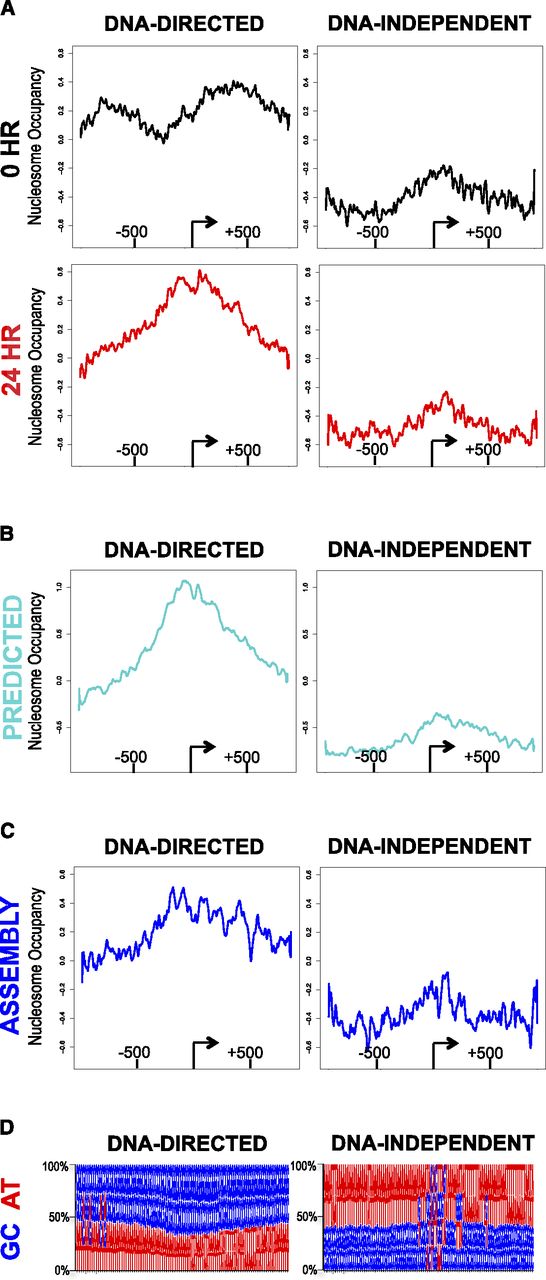

Figure 3.
Figure 3.

DNA sequence determined the concerted, widespread, transient redistribution of nucleosomes. (A) Average values for all genes identified as DNA-directed and DNA-independent, calculated by alignment of loci to the TSS for 0 h (black) and 24 h (red). (B) Average values for all genes identified as DNA-directed and DNA-independent, calculated by alignment of loci to the TSS for the predicted (cyan). (C) Average values for all genes identified as DNA-directed and DNA-independent, calculated by alignment of loci to the TSS for the assembly (blue). (D) Average GC (blue) and AT (red) content at each position is represented as a sequence logo below each column.

This Article

  1. Published in Advance December 5, 2013, doi: 10.1101/gr.160150.113 Genome Res. 24: 251-259
