RSC-dependent constructive and destructive interference between opposing arrays of phased nucleosomes in yeast

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

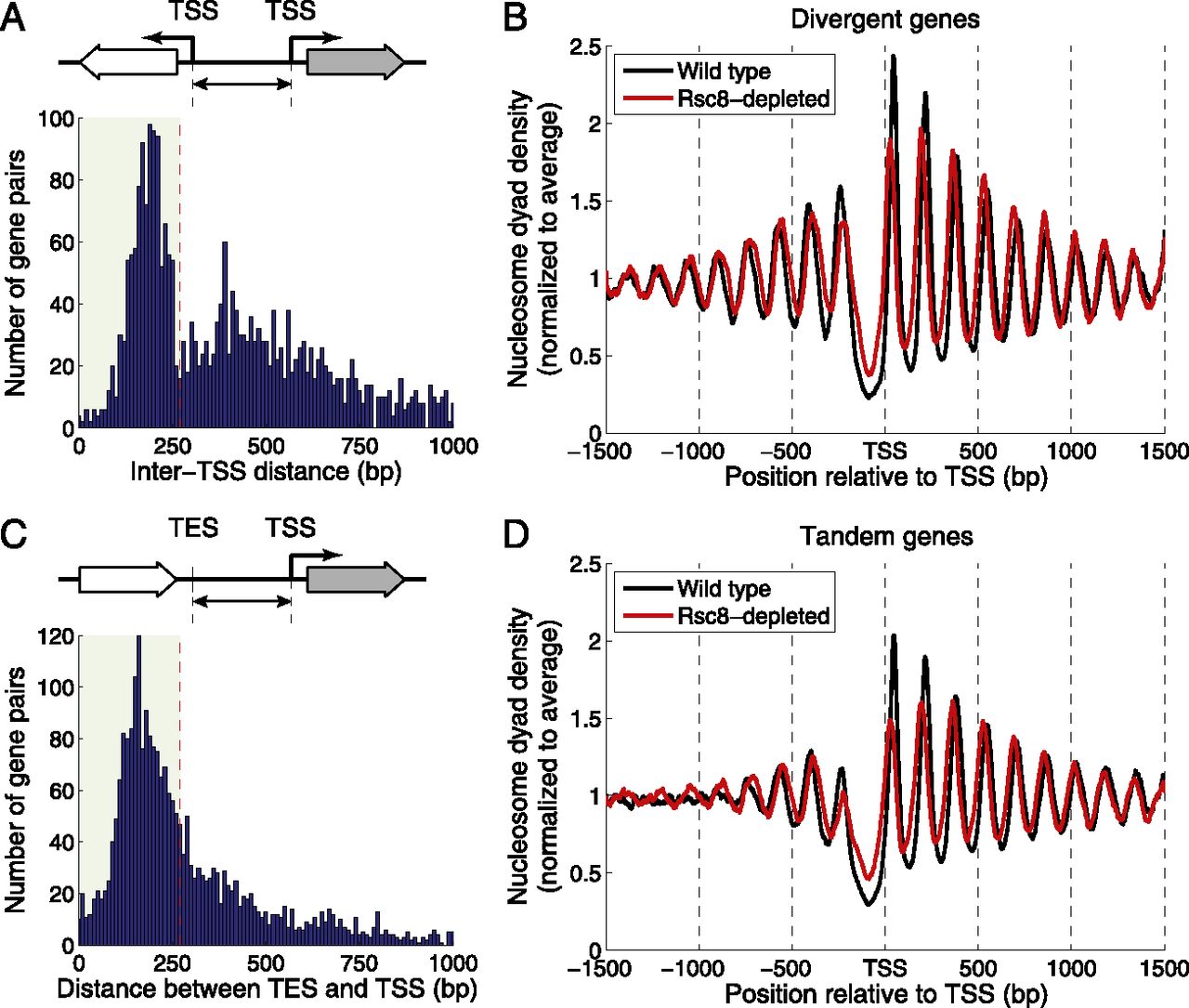

Figure 6.
Figure 6.

Upstream nucleosomes in Rsc8-depleted cells shift toward the NDR regardless of the orientation of the upstream gene. (A) Histogram of inter-TSS distances for divergent genes. (B) Average nucleosome dyad density profiles for divergent genes with inter-TSS distances <270 bp (shaded box in A). (C) Histogram of distances between TES and TSS for tandem genes. (D) Average nucleosome dyad density profiles for tandem genes with TES–TSS distances <270 bp (shaded box in C). In B and D, gene pairs are aligned to the TSS of the downstream gene.

This Article

  1. Published in Advance July 11, 2014, doi: 10.1101/gr.177014.114 Genome Res. 24: 1637-1649
