Small RNA profiling of Xenopus embryos reveals novel miRNAs and a new class of small RNAs derived from intronic transposable elements

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

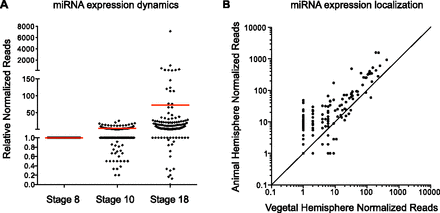

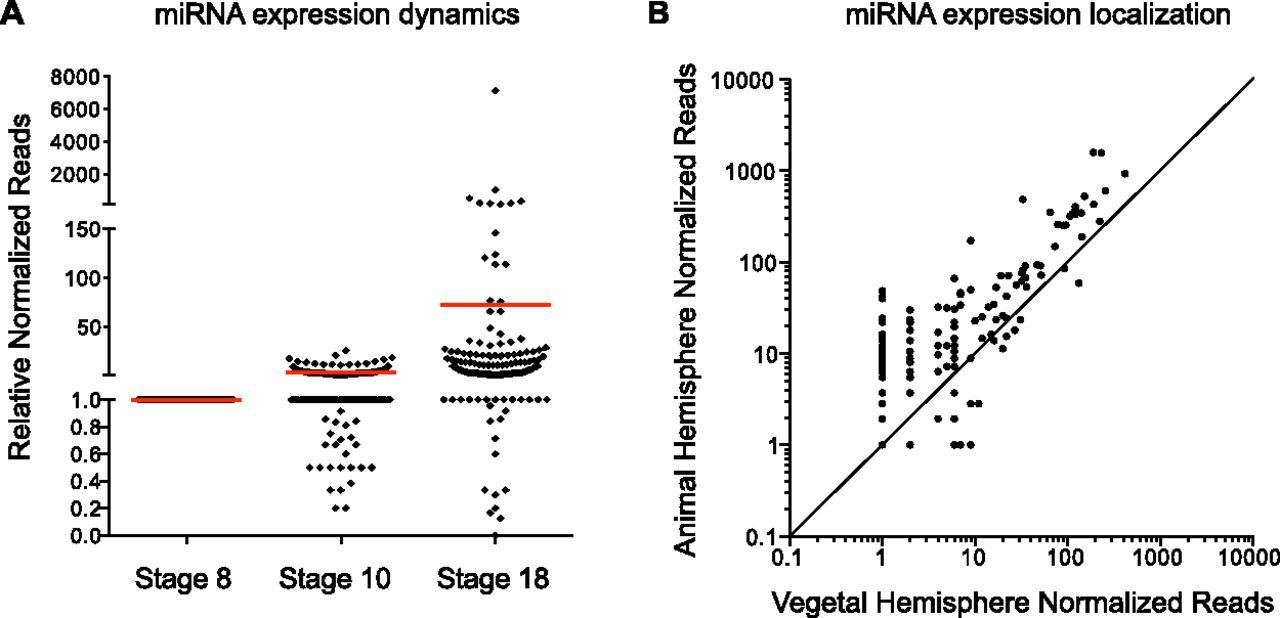

Figure 3.
Figure 3.

miRNA expression is highly dynamic and localized. (A) Normalized read numbers for individual miRNAs at stages 10 and 18 are shown relative to the stage 8 values. The red line indicates the mean. (B) Normalized miRNA reads in the stage 10 animal and stage 10 vegetal libraries are plotted on a logarithmic scale with y = x superimposed to show the animal–vegetal spatial distribution of miRNAs at gastrulation.
