Analysis of off-target effects of CRISPR/Cas-derived RNA-guided endonucleases and nickases

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

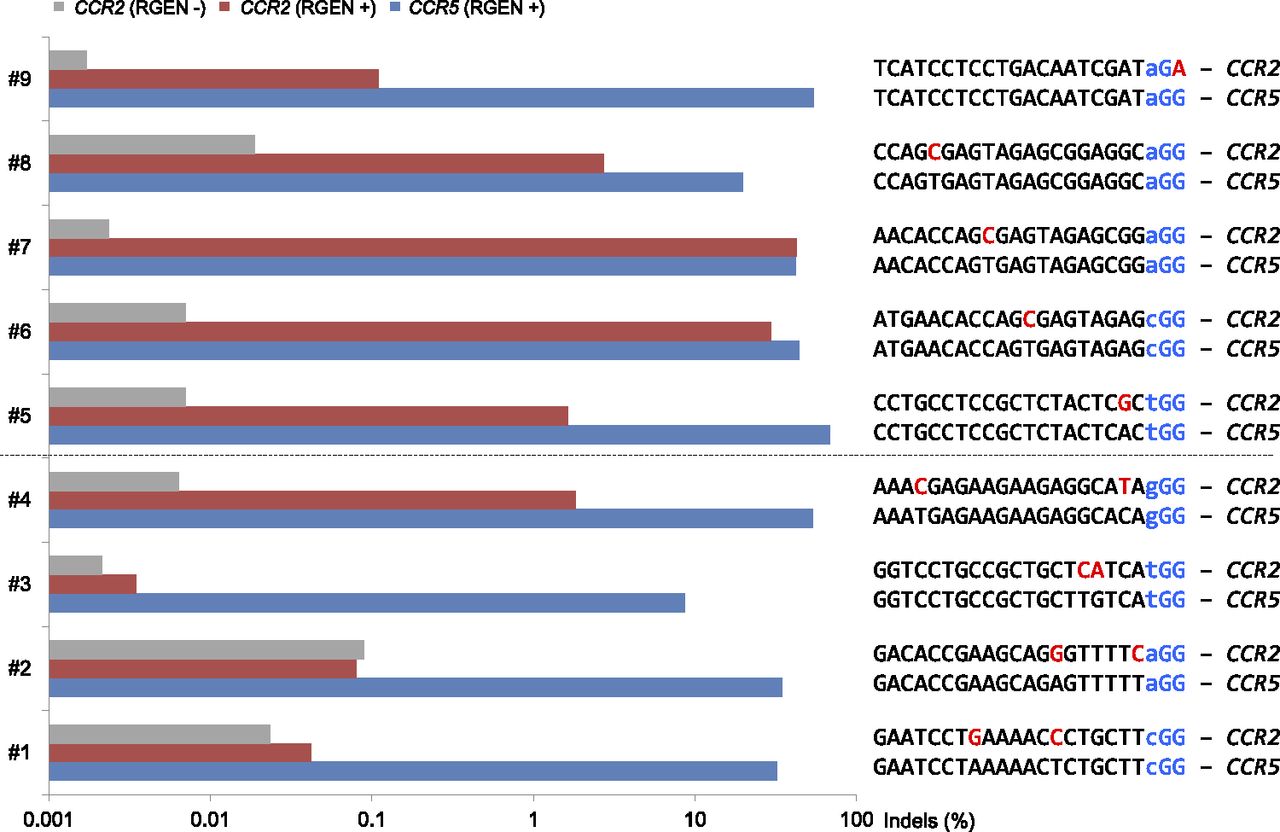

Mutation frequencies at CCR5 on-target sites and CCR2 off-target sites. K562 cells were transfected with RGENs that target nine different sites. PCR amplicons that span the on-target and off-target sites were subjected to deep sequencing.

This Article

  1. Published in Advance November 19, 2013, doi: 10.1101/gr.162339.113 Genome Res. 24: 132-141
