The ancestor of extant Japanese fancy mice contributed to the mosaic genomes of classical inbred strains

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

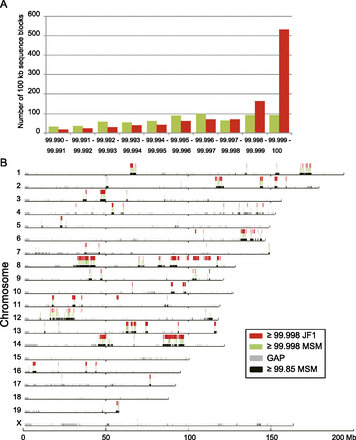

Figure 3.
Figure 3.

The 100-kb B6 blocks with extremely high sequence similarity to the MSM and JF1 strains. (A) The number of 100-kb B6 blocks with extremely high sequence similarity to the MSM and JF1 strains. The B6 blocks were compared to their counterparts in the MSM and JF1 strains for each 0.001% block from 99.990% to 100% similarity. (B) The chromosomal locations of the 100-kb B6 blocks with sequence similarity >99.998% to the MSM and JF1 chromosomes. Horizontal black boxes depict the regions with >99.85% sequence similarity to the MSM strain. Gray boxes indicate gaps in the B6 reference sequence.

This Article

  1. Published in Advance April 19, 2013, doi: 10.1101/gr.156497.113 Genome Res. 23: 1329-1338
