Competition between virus-derived and endogenous small RNAs regulates gene expression in Caenorhabditis elegans

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

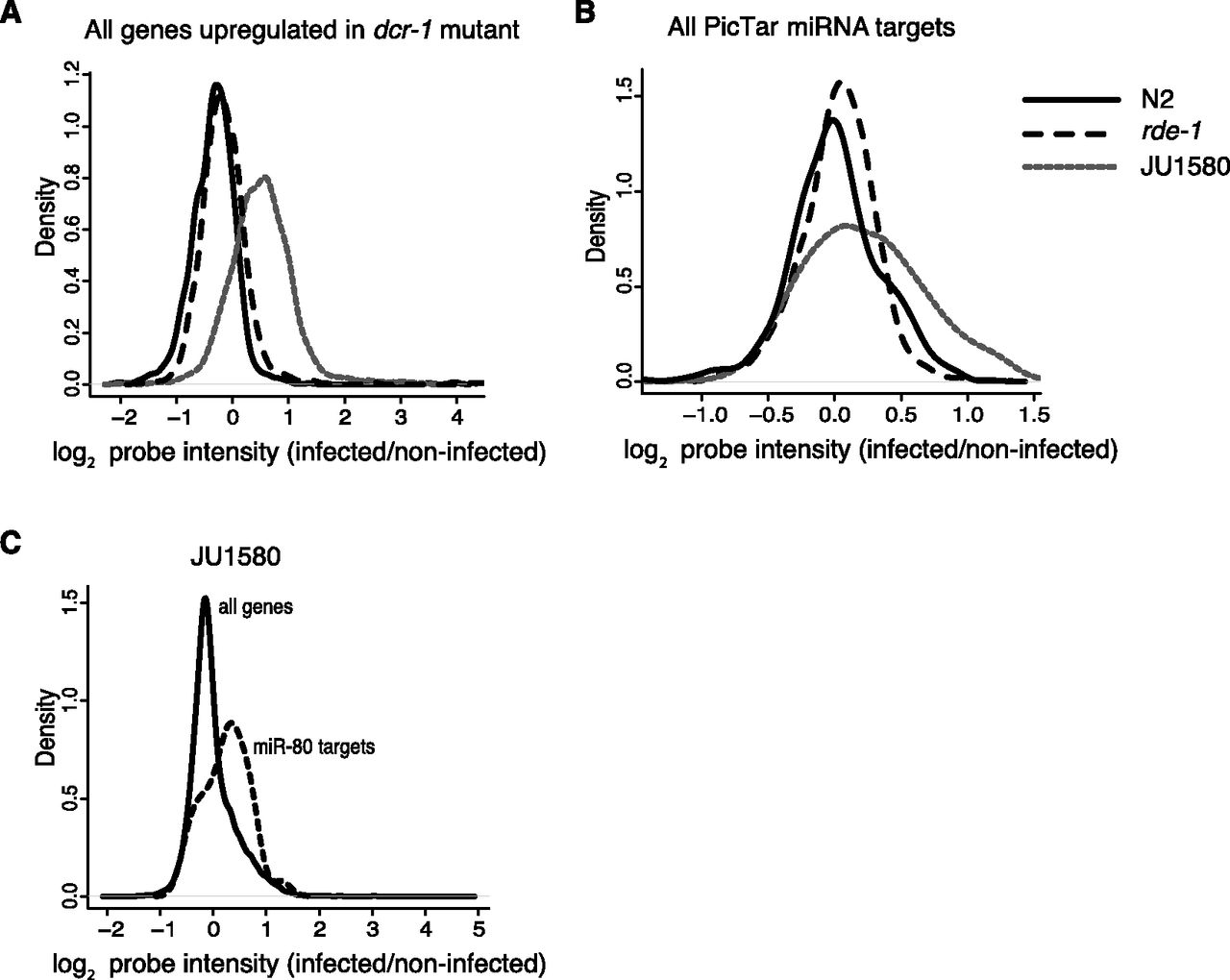

Figure 3.
Figure 3.

miRNA targets are up-regulated in JU1580 animals upon infection. (A) The behavior of genes up-regulated in dcr-1 mutants in N2, rde-1, and JU1580 upon infection (Welker et al. 2007). (B) Expression changes of all predicted miRNA targets (PicTar) in the three strains upon infection. (C) miR-80 predicted targets (PicTar) in JU1580 upon infection. All panels use the mean of all biological replicates.

This Article

  1. Published in Advance June 28, 2013, doi: 10.1101/gr.153296.112 Genome Res. 23: 1258-1270
