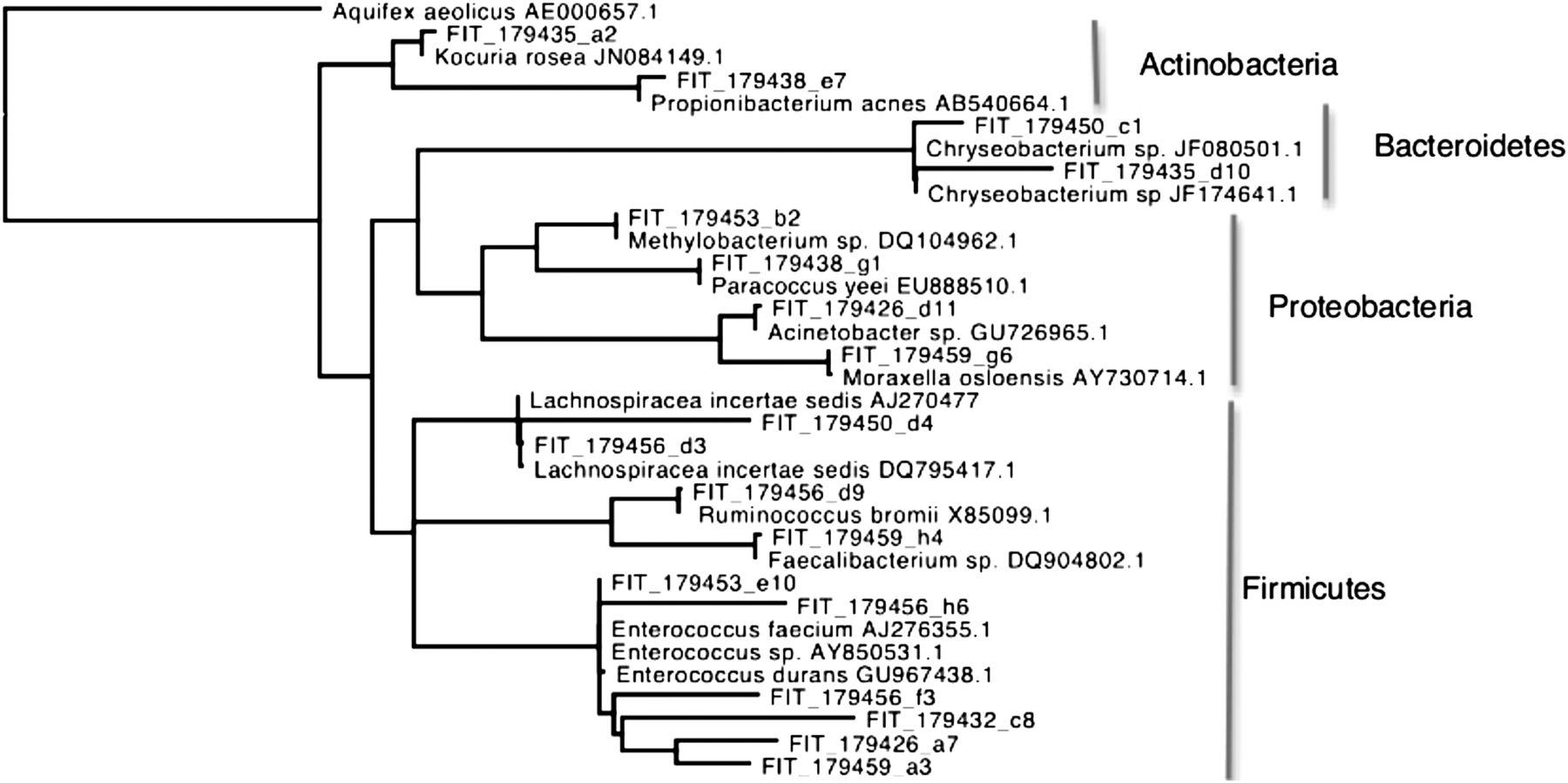

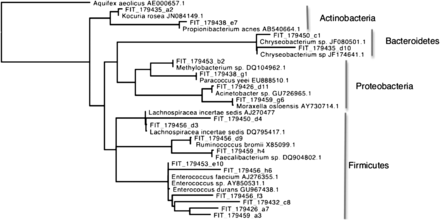

Figure 5.
Phylogeny of OTUs recovered from GMDs. GMDs occupied by a growing colony of bacteria extracted from feces were sorted for MDA. 16S rDNA was amplified and sequenced. The maximum likelihood tree below represents the diversity of 16S rDNA sequences binned into OTUs at 90% sequence similarity. Related sequences were included to show relationships. Support values are omitted for clarity.
