Highly active zinc-finger nucleases by extended modular assembly

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

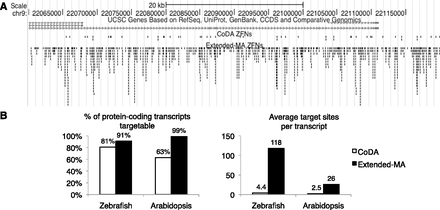

Figure 8.
Figure 8.

Spectrum of sequences targetable using extended MA. (A) An image from the UCSC Genome Browser shows potential extended-MA and CoDA ZFNs sites found within a 60-kb region at the human 9p21 locus (hg18, chr9:22060000-22119999). Each vertical black bar represents a target site. (B) A comparison of the transcript targeting capabilities reported for CoDA and calculated from the data in this study for extended MA.

This Article

  1. Published in Advance December 5, 2012, doi: 10.1101/gr.143693.112 Genome Res. 23: 530-538
