Genome-wide and parental allele-specific analysis of CTCF and cohesin DNA binding in mouse brain reveals a tissue-specific binding pattern and an association with imprinted differentially methylated regions

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 6.
Figure 6.

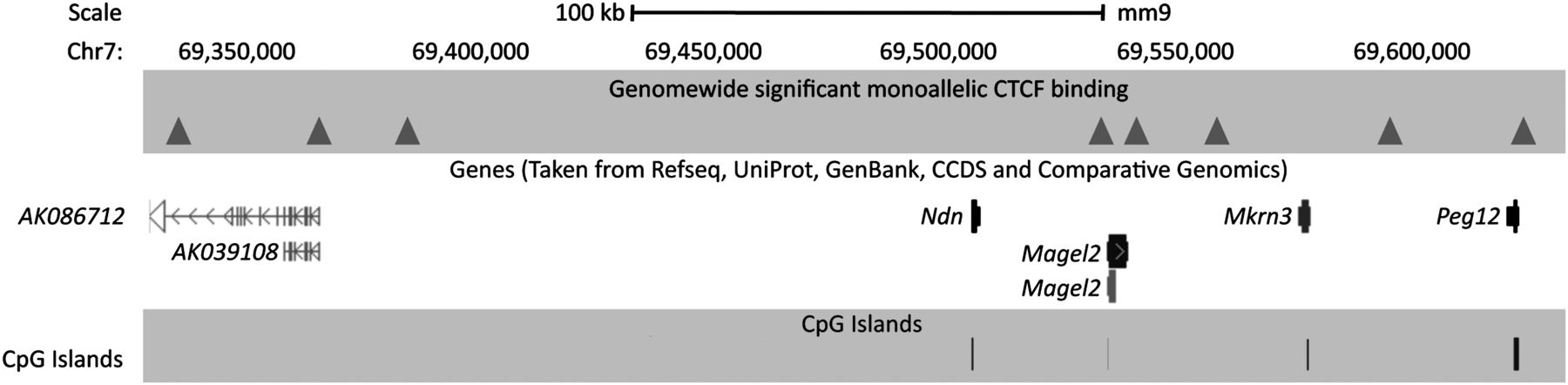

Multiple parent-of-origin-specific CTCF binding sites are observed on the paternal allele at the Magel2/Peg12 locus. (Triangles) Paternally bound CTCF binding sites. Genes and CpG islands are indicated. This region represents a unique example in the mouse genome of CTCF bound only on the paternal allele at eight regions in close proximity. This figure was adapted from the UCSC Genome Browser.

This Article

  1. Published in Advance June 26, 2013, doi: 10.1101/gr.150136.112 Genome Res. 23: 1624-1635
