Predicting cell-type–specific gene expression from regions of open chromatin

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 6.
Figure 6.

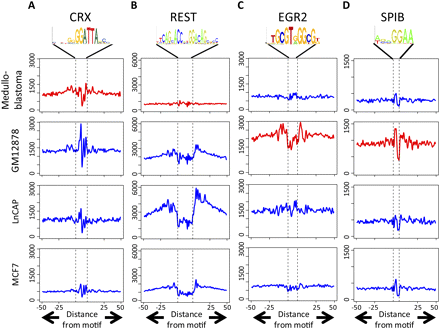

Aggregate plots of DNase-reads around motifs for factors with high regression coefficients. (Red lines) The cell line in which the TF is identified as a regulator. (A) CRX shows a footprint in medulloblastoma but not in the other cell lines shown. (B) REST shows a footprint in other cell lines but not in medulloblastoma, where it is not expressed. (C,D) EGR2 and SPIB show footprints in the GM12878 cell line.
