CBX3 regulates efficient RNA processing genome-wide

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

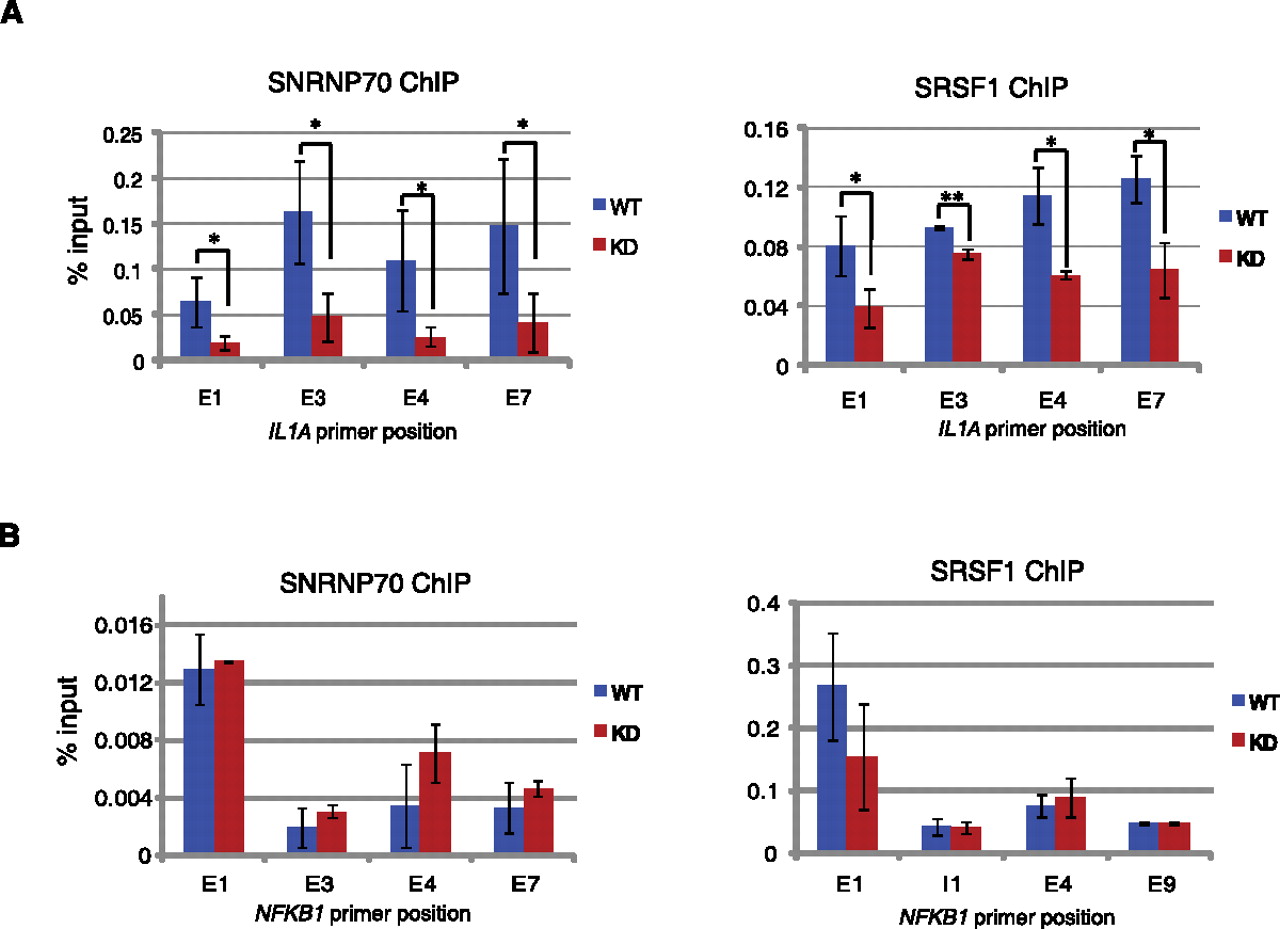

Figure 6.
Figure 6.

CBX3 binds preferentially to exons and influences recruitment of splicing factors. (A,B) ChIP-qPCR for SNRNP70 and SRSF1 splicing factor binding to IL1A and NFKB genes in WT and KD HCT116 cells treated for 30 min with TNF. IPs are represented as percentage input and are the average of at least three biological replicate experiments. Error bars calculated as the standard deviation between replicates. (*) P ≤ 0.05, (**) P ≤ 0.01.
